Description

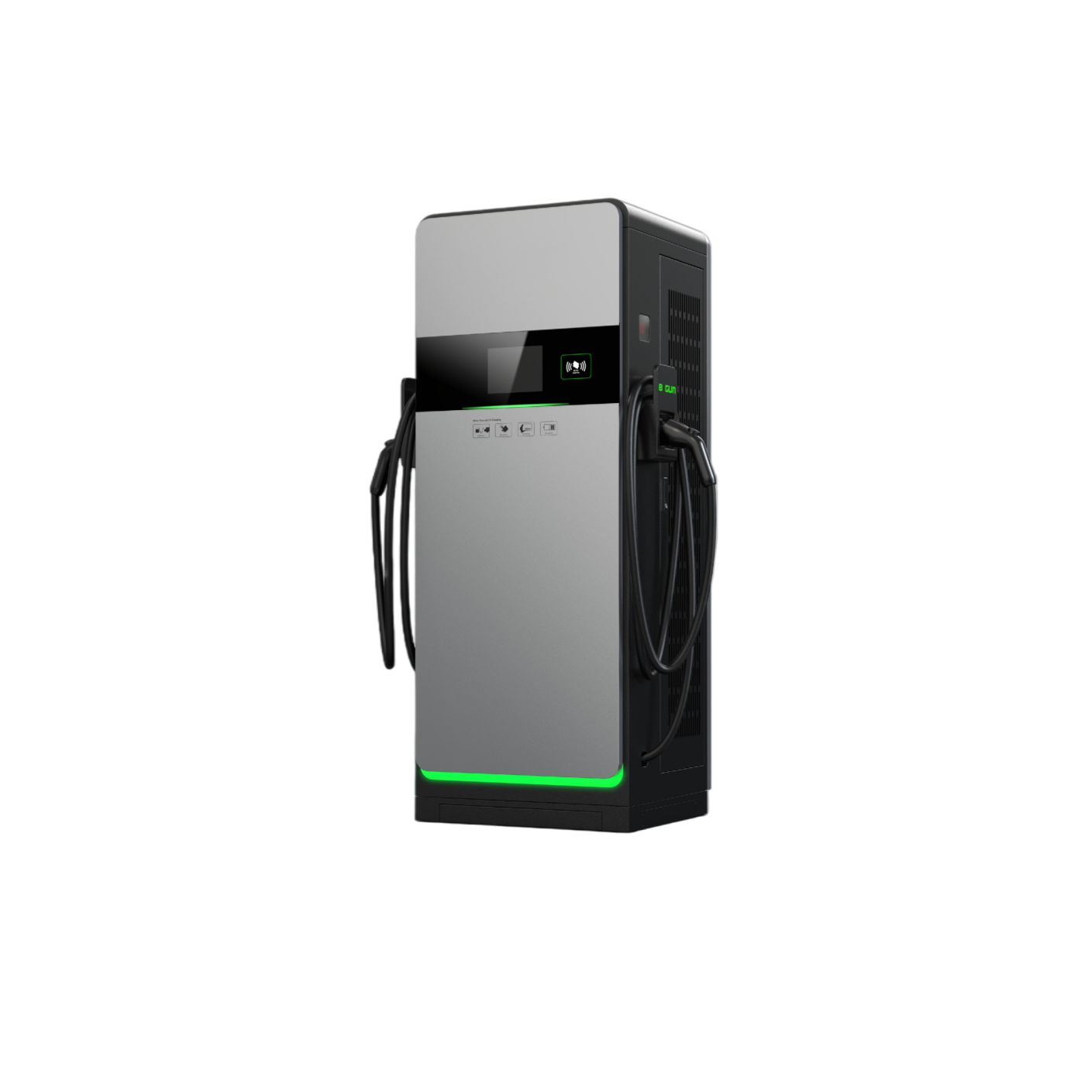

Designed from the ground up for reliability, scalability,

and real-worldperformance in demanding commercial environments,

our DC fast chargingsystems deliver promised power to your entire fleet-efficiently and sustainably.

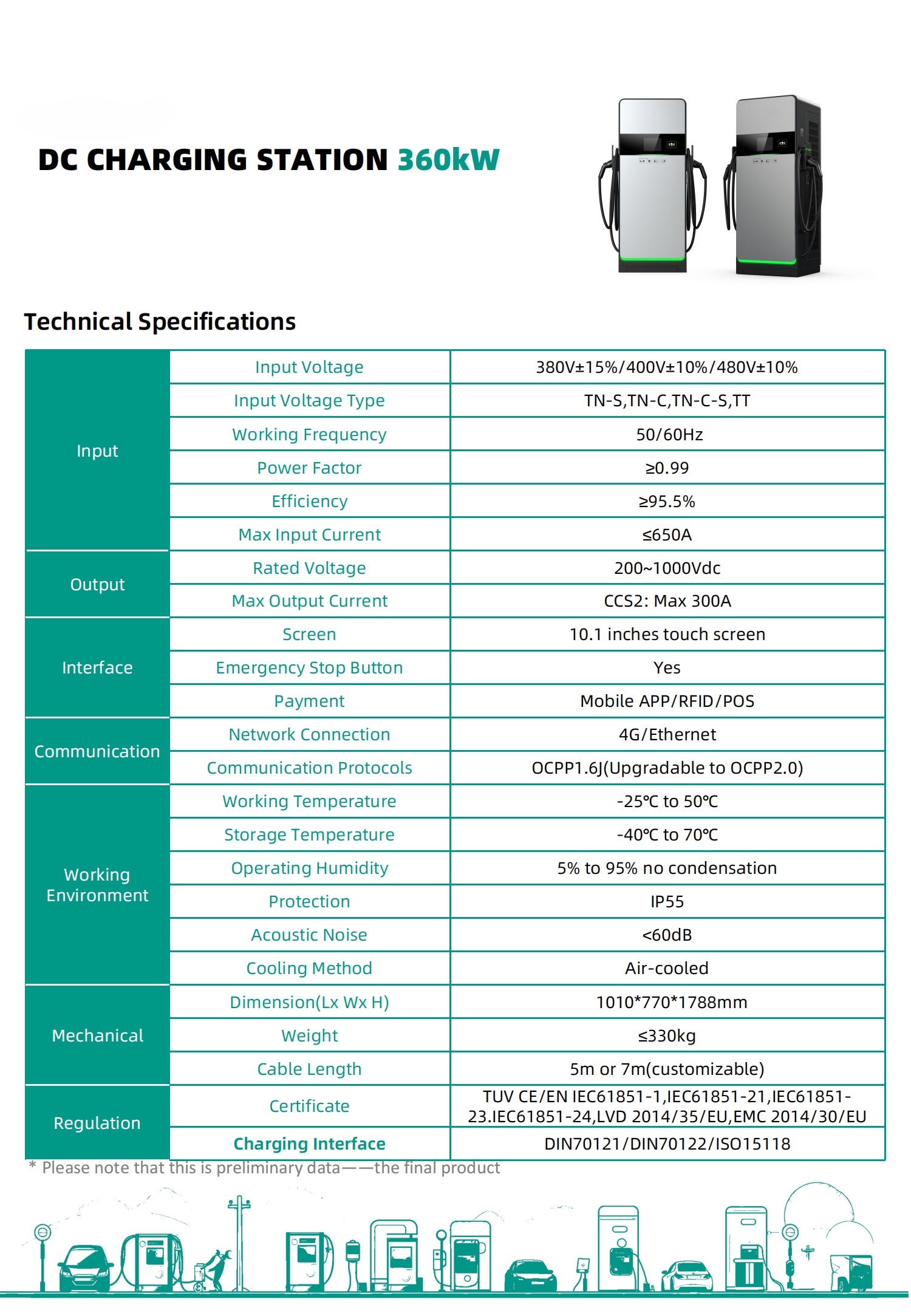

Connector and Electrical	Connector Type	CCS1 / CCS2 / GB/T
	Input Voltage	380V±15% / 400V±10% / 480V±10% (3-phase)
	Input current	≤ 650A (Max)
	Rated frequency:	50/60 Hz
	Max Output voltage	1000 Vdc
	Max Output Power	360 kW (Rated, model up to 400kW)
Protection	Ingress Protection	IP55
	Impact Protection	IK10
	Charging Interface Standards	DIN 70121, DIN 70122, ISO 15118
	Power Network Configuration	TN-S, TN-C, TN-C-S, TT
	Leakage protection:	assumed comprehensive electrical protection
	Operating temperature:	-25℃ to 50℃
	Operating humidity:	5% to 95% (no condensation)
	Cooling Method	Air-cooled
	Storage temperature:	-40℃ to 70℃
	Certificate	TÜV, CE, EN IEC 61851 series, LVD & EMC directives
	Charge Mode	DC Fast Charging (Up to 400kW)
	Internet connection:	4G / Ethernet
	External communication:	OCPP 1.6J (Upgradable to OCPP 2.0)
Functions	Display:	10.1 inches touch screen
	Communication protocol:	OCPP 1.6J
	Power Factor	≥ 0.99
	Efficiency	≥ 95.5%
	Metering	payment via APP/RFID/POS implies metering capability
	Acoustic Noise	< 60 dB
	Cable Length	5m or 7m (customizable)
	Dimensions product without cable	1010 (L) x 770 (W) x 1788 (H) mm
Mechanical	Weight gross, kg	≤ 330 kg



Power & Performance
Power output ranging from 60kW to 480kW for Level 3 fast chargingCapable of charging two or three vehicles simultaneously with independentoutputs

Future-proof design supporting up to 1000V for next-generation EV platformsLiquid-cooled 480kW ultra-fast charging options available for high-throughput sites.
Beyond the Label: Ensuring True Power Delivery
A common oversight in DC fast charging is focusing solely on the “kW” rating.

True performance hinges on voltage compatibility and current (Amps).

Many high-power chargers only achieve peak output with 800V/1000V vehicles, leaving today’ s prevalent 400V fleets underpowered.A “200kW” charger with a 200A cable delivers only ~80kW to a 400V vehicle(200A x 400V).
Our Volt-Z DC charger ensures no compromise:
350A cable + 500A boost mode delivers a true 200kW to 400V vehicles96%energy efficiency maintained across voltage ranges Consistent, high-performancecharging for every vehicle in your fleet

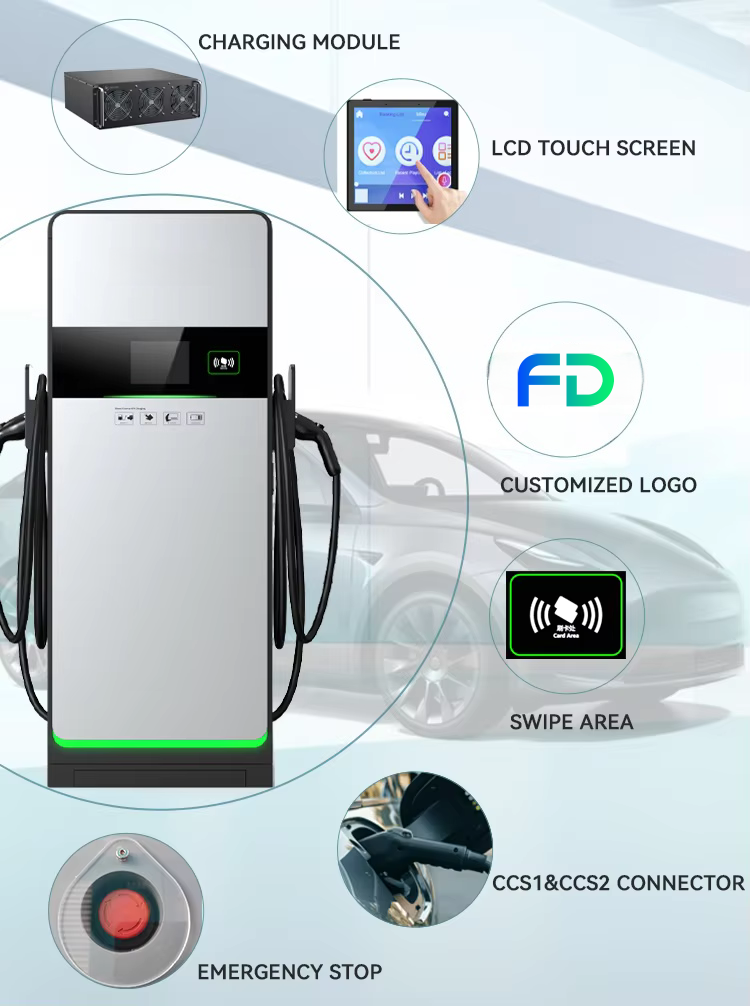

Smart & User-Friendly
10.1″ LCD touchscreen with an intuitive interface designed for driverconvenience
Flexible authentication options: Plug & Play, RFID, OCPP 1.6J, QR Code,and optional POS payment

Multi-connectivity options: Ethernet, 3G/4G, and Wi-Fifor remotemanagement and monitoringCompatibility with all major standards: CHAdeMO, GB/T, CCS1, and CCS2connectors.

Built for Global Deployment
Modular architecture allows flexible expansion of power and connectorcapacity, easily adapting to growing fleet sizes and evolving business needs.Configurable power and voltage settings to meet regional and localgrid requirements
Low-maintenance construction with accessible components forreduced downtime
Safety & Compliance
Full compliance with OCPP 1.6J and ISO 15118 for interoperability andsmart charging
IP55-rated enclosuje protects against dust and water jets, suitable forindoor and outdoor use
All critical components carry CE certification for EU market safety standardsSECC controller independently tested and certified by TÜV
Look Beyond the kW Rating.
Choose a charging partner that guarantees performance for your entirefleet today and tomorrow.
