Description

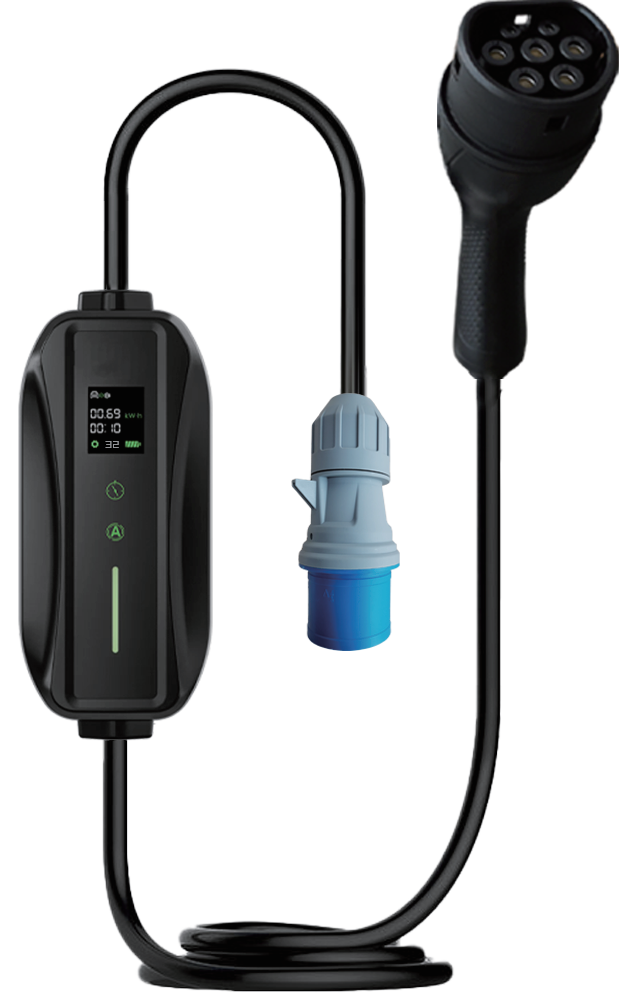

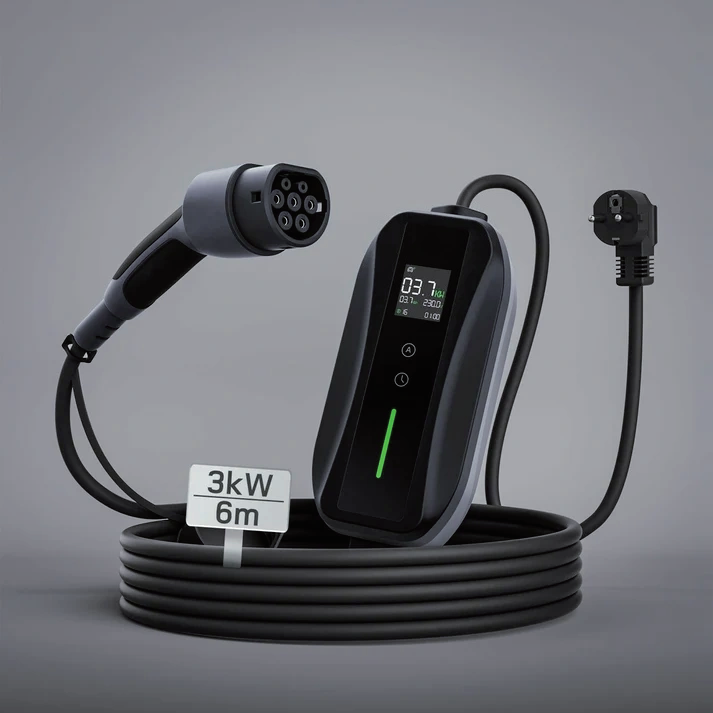

Volt-A-T Basic portable charger

Engineered for top-tier safety, it features real-time outletmonitoring, advanced temperature control, and multi-layer electricalprotection including RCD AC 30mA + DC 6mA, over-current/voltage,etc to ensure secure charging anywhere.Built with a durable, waterproof casing, it delivers consistent performancefor daily use. Ideal for convenient home charging, worry-free road trips, andas a dependable backup for business fleets.

Connector and Electrical	Connector Type	Type1, Type2, NACS, GB/T
	Input Voltage	230V AC
	Input current	16A/32A
	Rated frequency:	50Hz±2%
	Output voltage	230V+10%(1phase); 400V+10%(3phase)
	Max Output Power	3.5kW (1 Phase), 7kW (1 Phase), 11kW (3 Phase)
	Max Output Current	16A (for 3.5kW/11kW), 32A (for 7kW)
Protection & Environment	Ingress Protection	IP66 (Control Box), IP54 (Charging Plug)
	Impact Protection	Not mentioned
	Leakage protection:	Type B (AC 30 mA + DC 6 mA)
	Operating temperature:	-25°C to +50°C
	Operating humidity:	＜93%＞ RH±3 % RH
	Altitude:	≦2000m
	Storage temperature:	-40°C to +80°C
	Electrical protection:	Overcurrent, Overvoltage, Overtemperature protection
Functions & Performance	Delay charging	Yes
	Adjust current	Yes
	Display:	LCD display
	Standard and CE certificate	IEC 62196-2, IEC 62752, CE by TÜV
	Weight gross, kg	5kg



Compatibility: Support Typel, Type2, NACS, GB/T charging standards.

Variable power options: 3.6kw,7kw and 11kw are available.

Worry-free and safe use: CE safety certified. Professionally tested and certifiedcharging station.

Simple use and clearly LCD display.

Functions and protections include:

Type A + DC 6mA leakage protection

Adjustable current output of 6~32AIP66 (control box section)

Relay adhesion detection

Internal temperature and plug temperature detection and protectionPE Loss Alarm

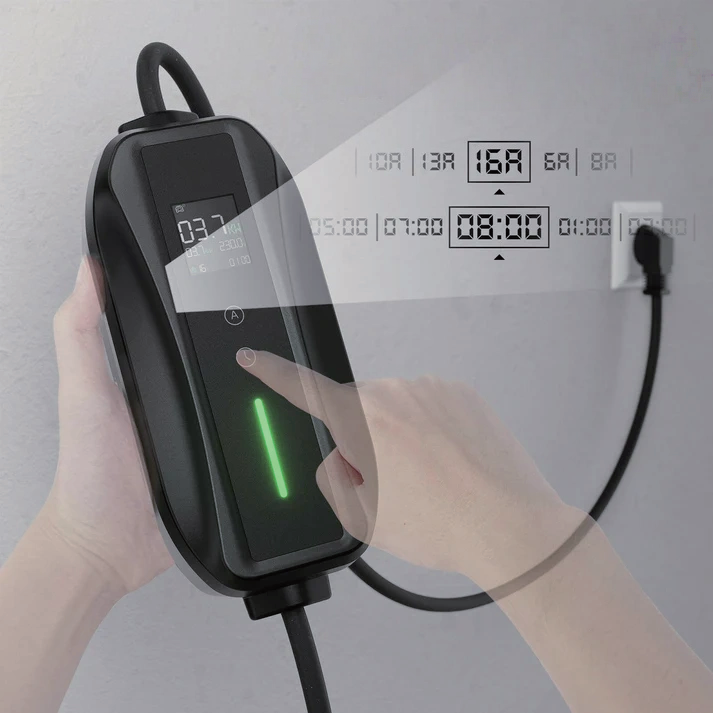

LCD displays simple images and dynamic icons.Simple operation, just plug in the charging gun to charge.Scheduled delayed charging
