Description

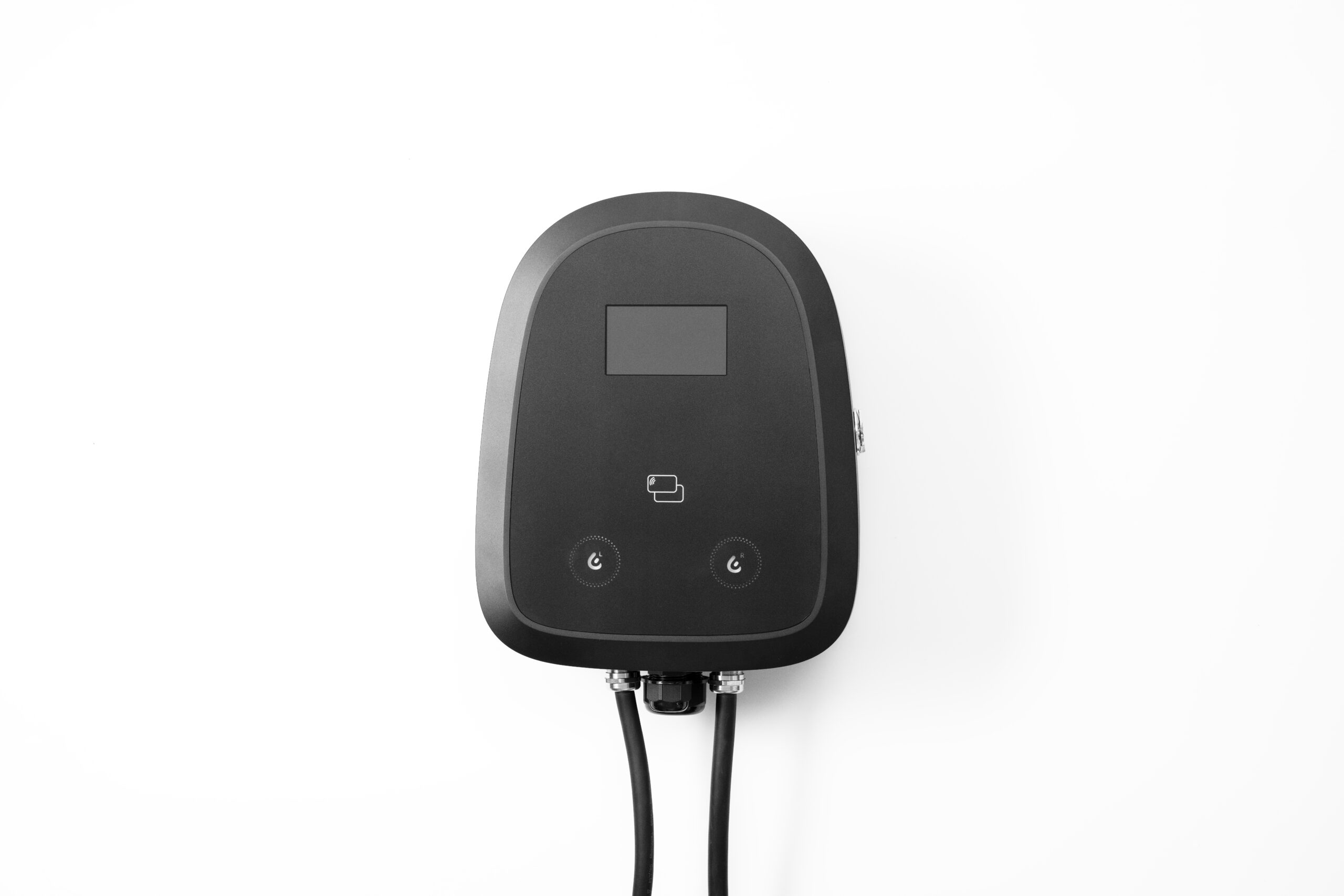

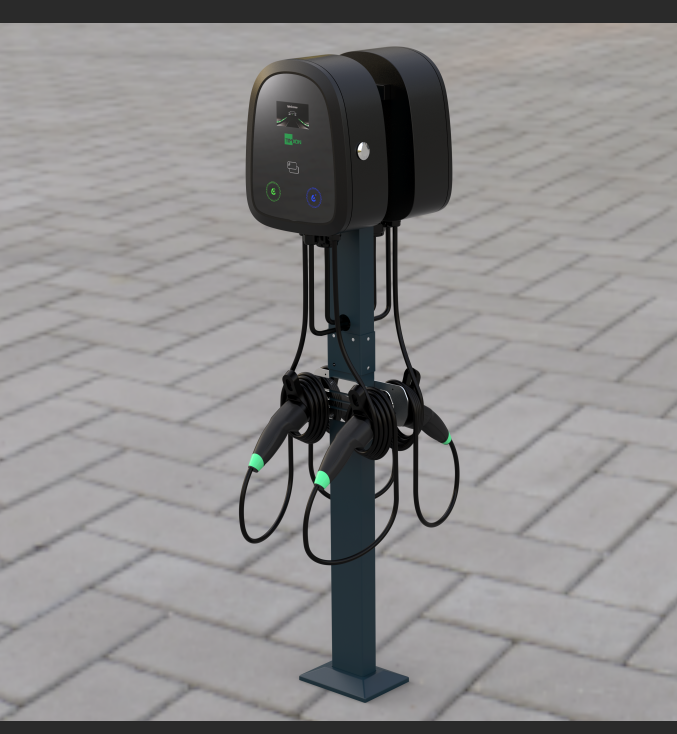

The Volt-C-T Dual Wallbox is high quality charging station designed to charge 2electric cars simultaneously, with support for RFlD, application, OCPP.Idealfor companies, rental companies, shopping centers.

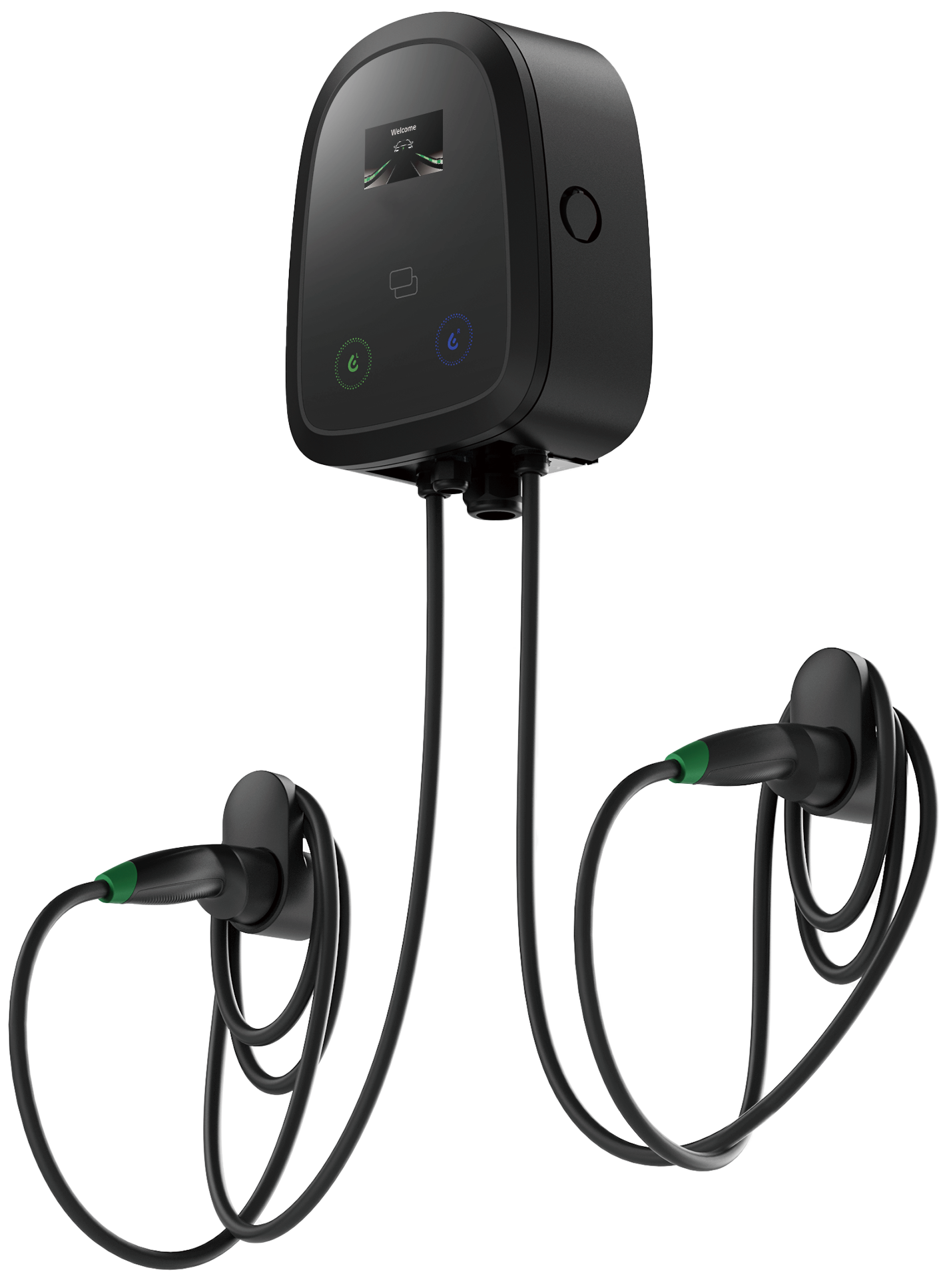

| Connector and Electrical | Connetor Type | Type 2 Socket / Type 2 cable (5m) |
| Input Voltage | 220V (1-phase) / 400V (3-phase) | |
| Rated frequency: | 50/60 Hz | |
| Output voltage | 220VA ± 20% (1-phase) / 380VA ± 20%(3-phase) | |
| Max Output Power | 14kW / 22kW / 44kW | |
| Protection | Ingress Protection | IP65 |
| Leakage protection: | Type A (30mA) + DC 6mA built-in, Type B RCCB (30mA AC + 6mA DC) | |
| Operating temperature: | -30° C ~ 50° C | |
| Operating temperature: | -30°C ~ 50°C | |
| Altitude: | ≦2000m | |
| Storage temperature: | -40° C ~ 80° C | |
| Electrical protection: | Over current, over voltage, under voltage, over temperature, leakage, short circuit, etc. | |
| Certificate | CE, TUV | |
| Functions | Charge Mode | Supports simultaneous charging for two vehicles with automatic power distribution. |
| Internet connection: | WiFi + Bluetooth, 4G optional, Ethernet optional | |
| External communication: | OCPP 1.6J, RFID, 3rd-party platforms | |

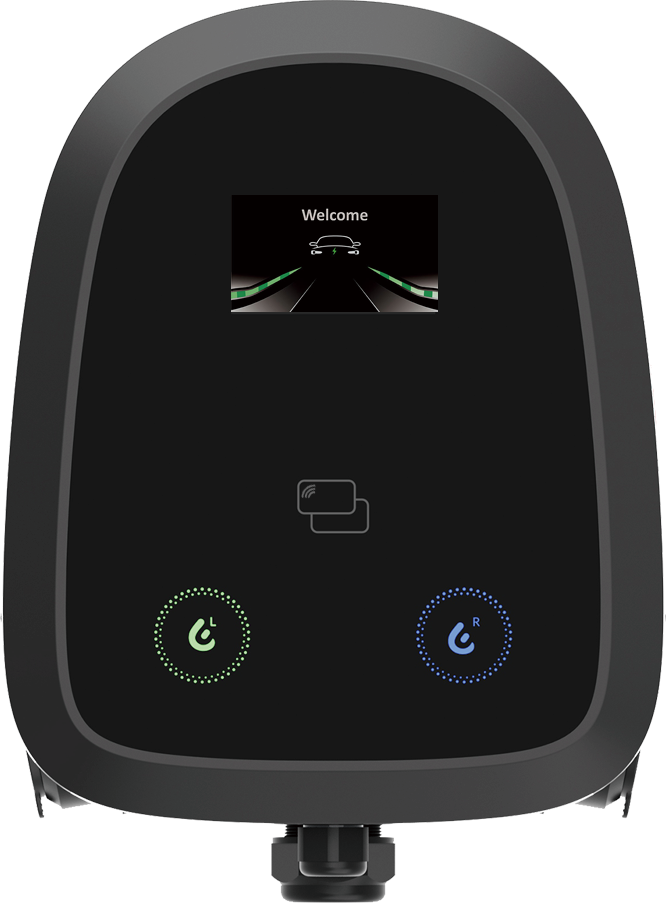

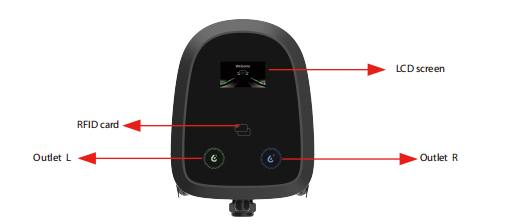

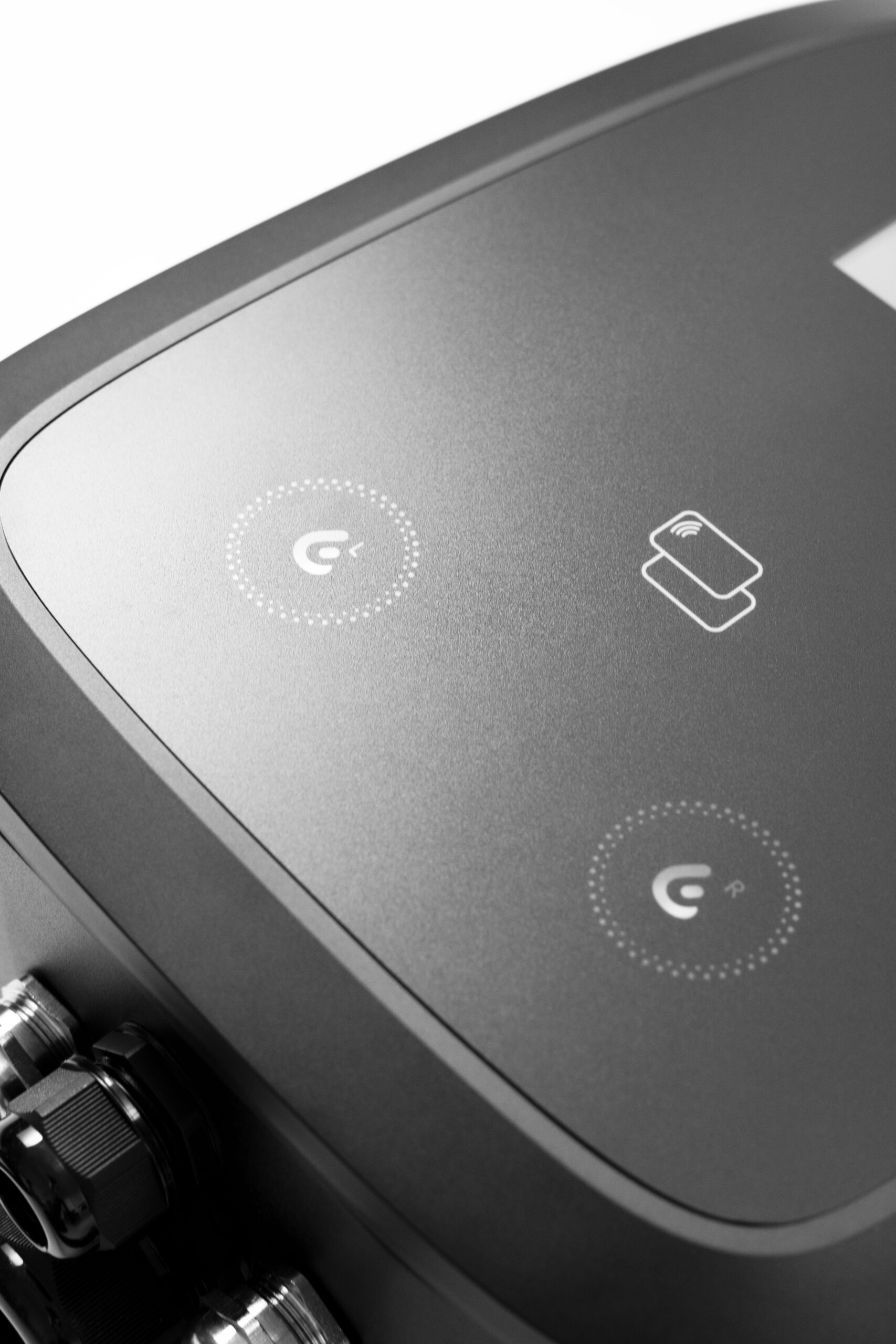

| Display: | 4.3-inch LCD screen + touch buttons | |
| Communication protocol: | OCPP 1.6J, WiFi 802.11 b/g/n, Bluetooth, 4G, Ethernet | |
| Dynamic load balance | Dynamic load balancing | |
| Metering | Built-in smart meter |
Target groupFeatures
Households with Multiple EVs: The ideal solution for families needingto charge two vehicles simultaneously
Workplaces & Commercial Properties: Provide convenient charging foremployees, visitors, or feet vehicles, maximizing infrastructure use.
Condominiums & Apartment Complexes: A space-efficient sharedcharging point for resident communities.
Wholesalers & Retailers: Build your own branded charging product linewith our customizable solution.
Features
OCPP Compatibility: Compatible with theOCPP 1.6J protocol, it integrates OCPP modules and connects to third-partycommercial charging platforms, enablingreporting, remote control, and billing. RFlDaccess prevents unautho-rized use and providesmaximum control and securitythrough a singlesystem.
Load balancing
The Volt-A-T EV charger has a built-in smart meter and has the function ofdynamic load balancing. lf you need to connect multiple EV chargers at thesame time and achieve dynamic load balancing, a CT Hub is required. One CTHub can maximum connect 16 units EV charger and can test energydistribution. Charging in public places can reasonably distribute electricityimprove usage efficiency, and reduce load. And FUDA can provide the oponalsolutionof CT clamp, which can accurately monitor the energyconsumption data of each EV charger When EV chargers need to be usedwith solar photovoltaicsystems, CT Clamp is also indispensable.
Functions:
Fast charging 2*22KW/2*11KW/2*7KW
Cable or socket versionSupports WiFi + Bluetooth, 4G and Ethernet optionalLCD display+ touch buttons
Easy installation and maintenanceOCPP, OTA smart scheduled charging
Photovoltaic charging, smart home load managementTLS encryption
Type A + DC 6mA leakage protection (TU RCD + RCCB)
IP55&IK10
100,000-cycle contactor for long-term use
