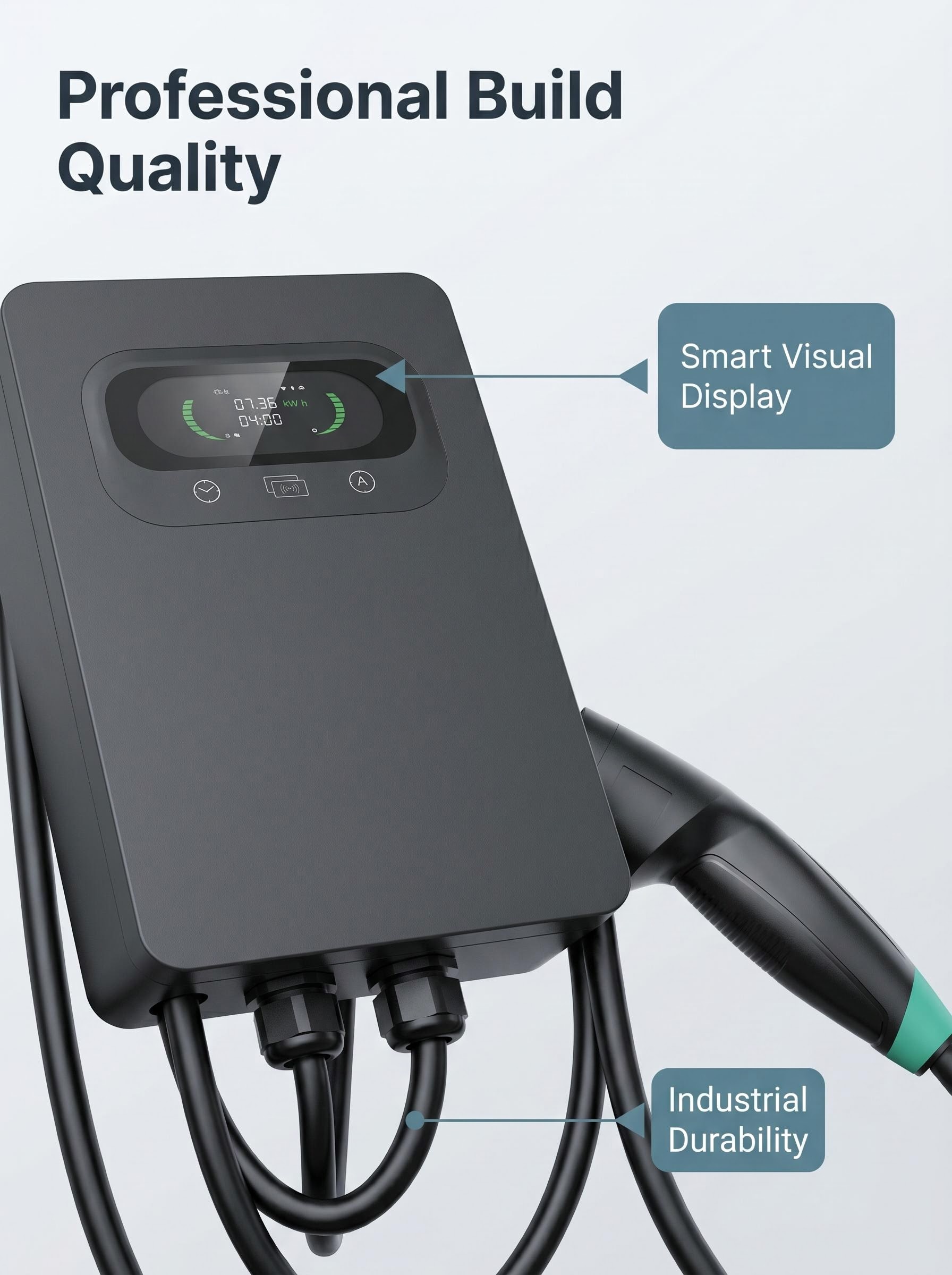

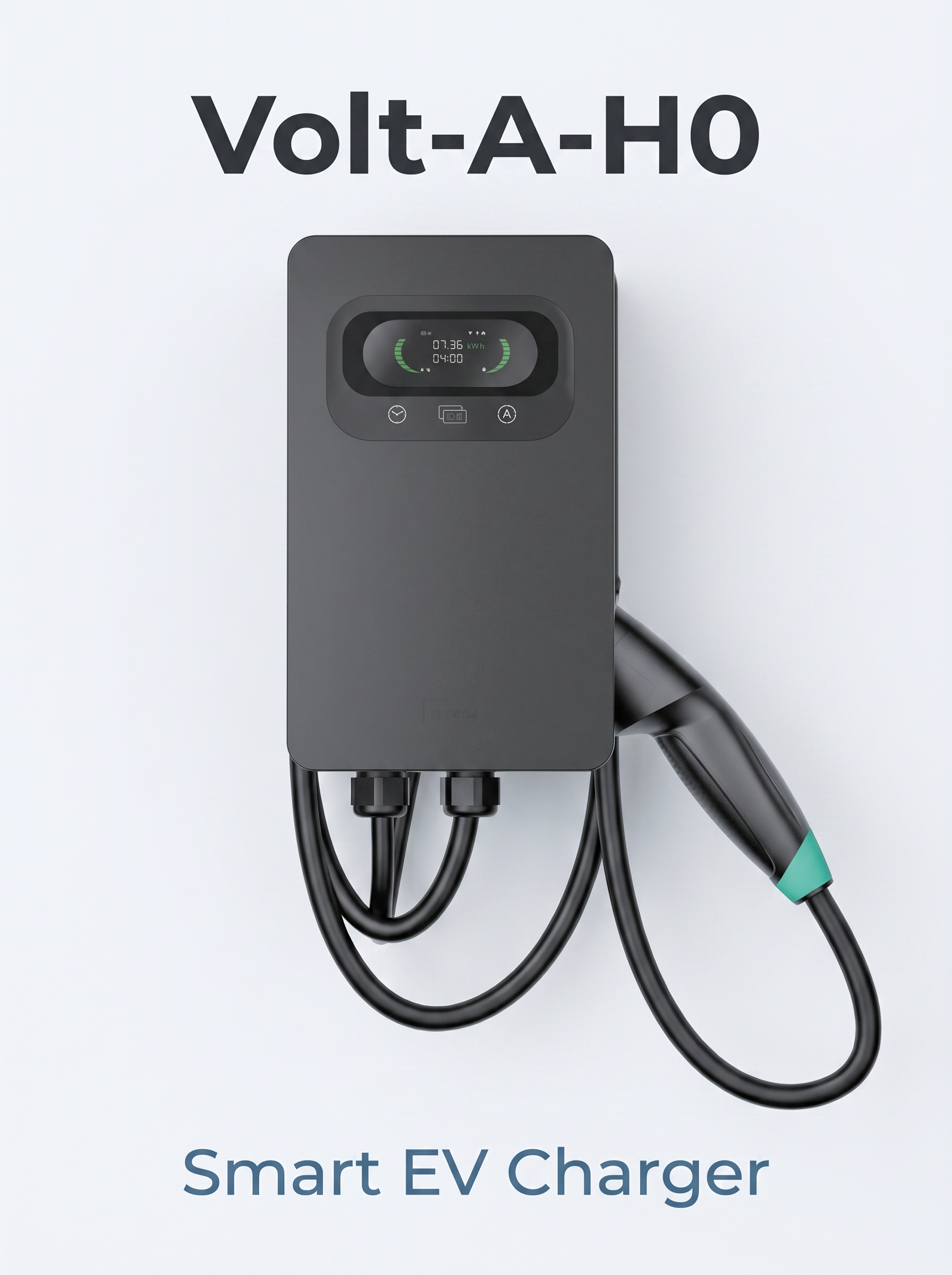

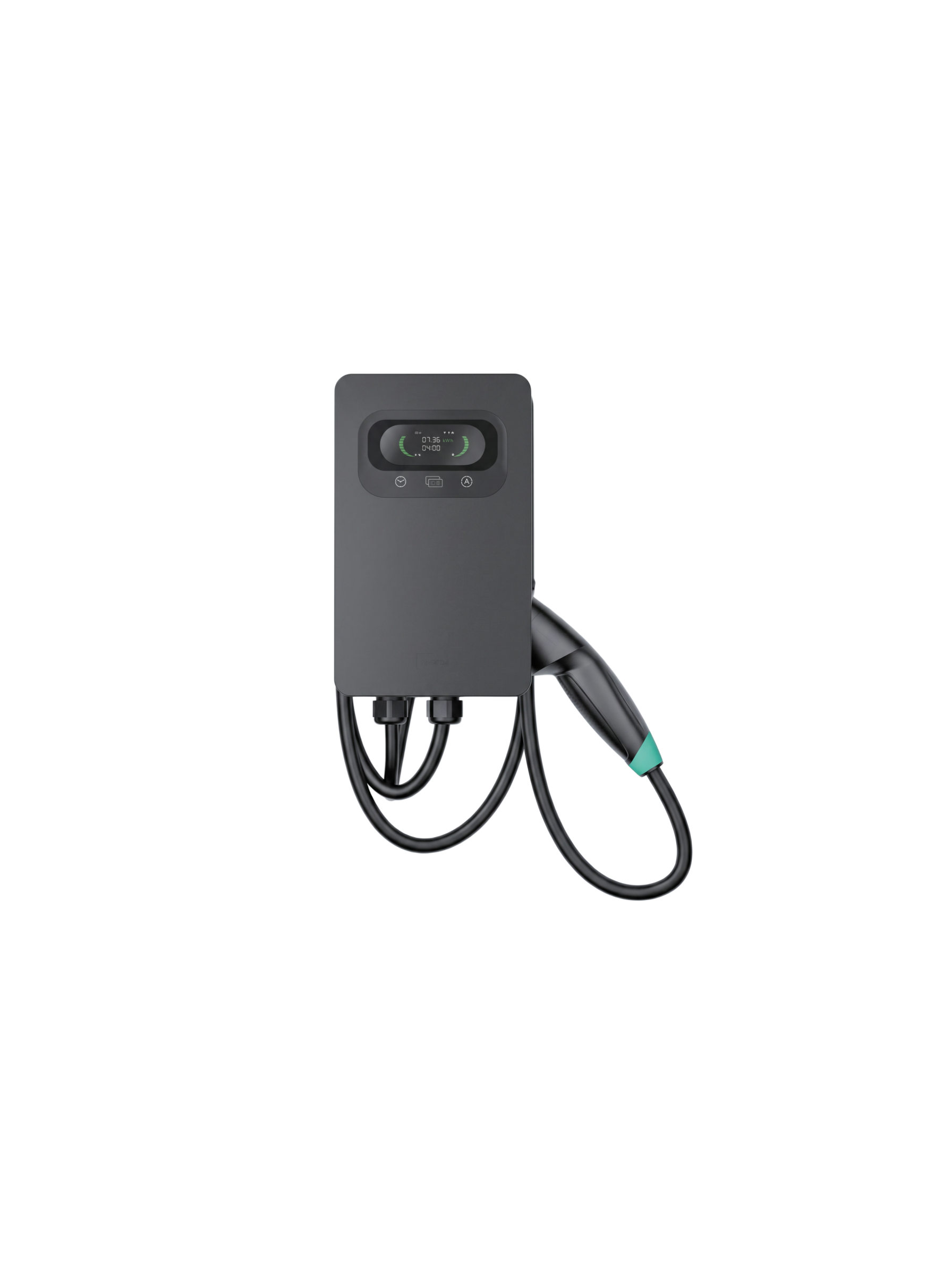

Volt-A-H0 Smart AC Wallbox

Volt-A-H0 Smart AC Wallbox
Volt-A-H0 Smart AC Wallbox - Image 2
Volt-A-H0 Smart AC Wallbox - Image 3
Volt-A-H0 Smart AC Wallbox - Image 4
Volt-A-H0 Smart AC Wallbox - Image 5
Volt-A-H0 Smart AC Wallbox - Image 6
Volt-A-H0 Smart AC Wallbox - Image 7

Volt-A-H0 is a high-performance smart AC charging solution engineered for residential, commercial, and fleet applications. Available in 7kW, 11kW, and 22kW power configurations, it delivers flexible charging options to meet diverse needs.

  1. Broad Compatibility: Equipped with a Type 2 connector and 5-meter integrated cable (IEC 62196-2), it supports all major European-standard electric vehicles.

  2. Smart & Connected: Features Wi-Fi, Bluetooth, 4G, and LAN connectivity, with OCPP 1.6J protocol support for seamless integration with central management systems.

  3. Built to Last: With IP55 weatherproofing and IK10 impact resistance, it performs reliably in both indoor and outdoor environments, year after year.

  4. Simple Installation: Compact design (187mm × 303.7mm × 122mm) supports both wall-mounted and pole-mounted setups, making installation quick and hassle-free.

Description

1.Key Functions & Smart Features

The Volt-A-H0 smart EV charger is available with multiple functions to suit different environments:

  • App Control: Through our dedicated mobile APP, you can freely set charging time and duration, make reservations for charging, and view your charging history.

  • RFID Card Swipe: Ideal for shared charging locations, allowing only authorized users to access the charger.

  • Plug-and-Charge: Simply plug in and start charging without additional authentication steps for maximum convenience at home.

  • OCPP 1.6J: Supports seamless integration with central management systems, enabling remote diagnostics, smart charging schedules, and flexible payment solutions.

    2.Built for Safety & Durability

    The Volt-A-H0 smart wallbox is globally certified, ensuring safe and reliable operation. It includes comprehensive protection mechanisms:

    RCD Protection: Built-in Type A (30mA) + DC 6mA residual current protection, preventing electrical risks.

    Multi-Layered Safety: Over-current, over/under voltage, over-temperature, leakage, and PE ground protection.

    Weatherproof & Impact Resistant: With an IP55 rating for dust and water resistance and IK10 rating for impact resistance, it is built to perform reliably in any outdoor or indoor environment.

    3.Easy Installation & Customization

    The Volt-A-H0 smart wallbox supports both wall-mounted and pole-mounted installations, making it adaptable to various settings. It also offers ODM & OEM customization, allowing businesses to tailor branding and features to their specific needs. With a compact footprint and lightweight design (from 3.8kg to 5.0kg), installation is quick and hassle-free.

    4.Target Groups

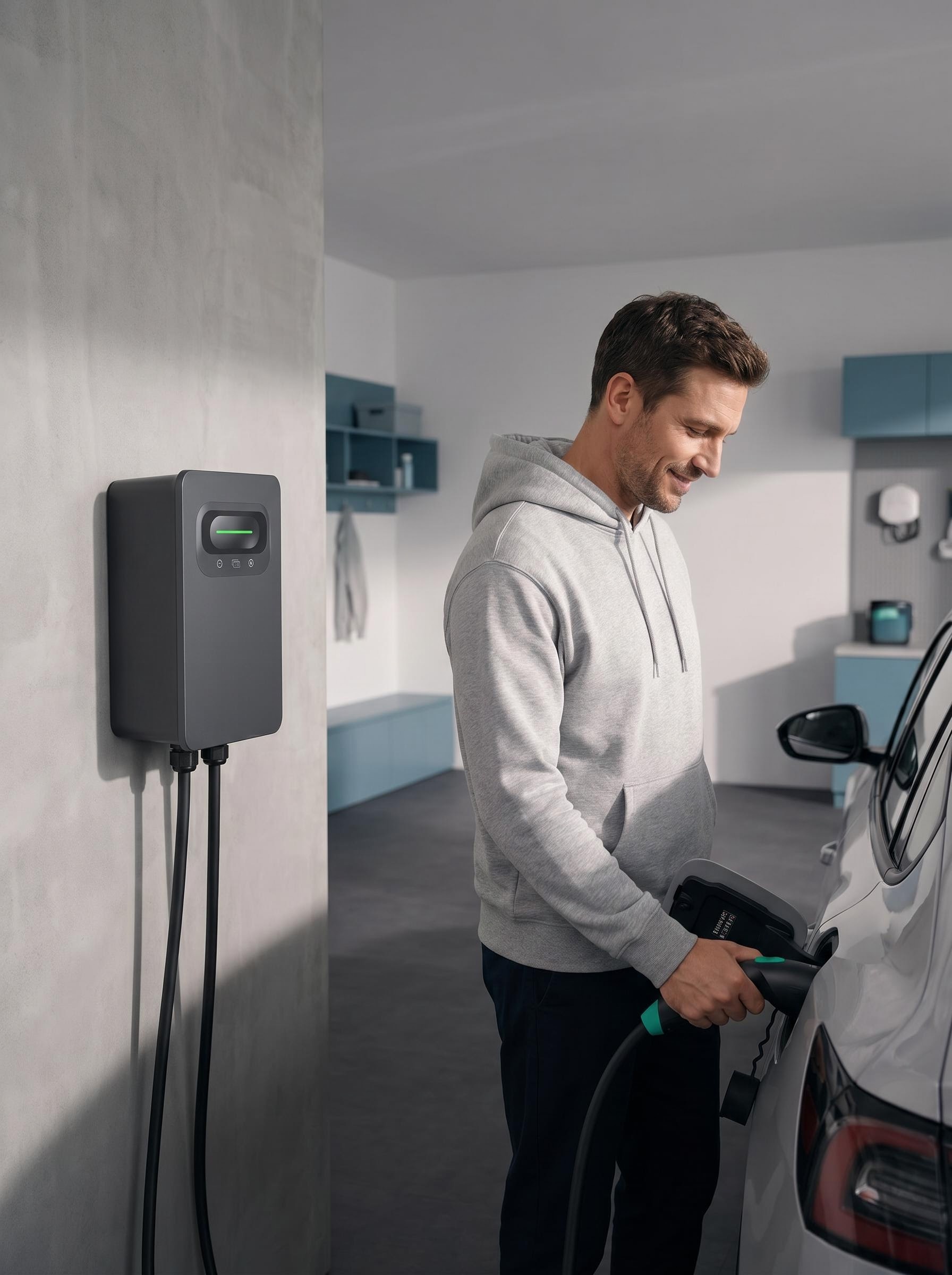

  • Homeowners: Compact, powerful, and easy-to-use daily charging at home.

  • Apartment Buildings: Shared charging access with RFID management for residents.

  • Small Businesses & Commercial Sites: Reliable charging for staff, customers, or fleets in offices, hotels, and retail locations.

  • Long-Dwell Locations: Hotels, schools, or workplaces where vehicles are parked for extended periods, benefiting from scheduled and smart charging.

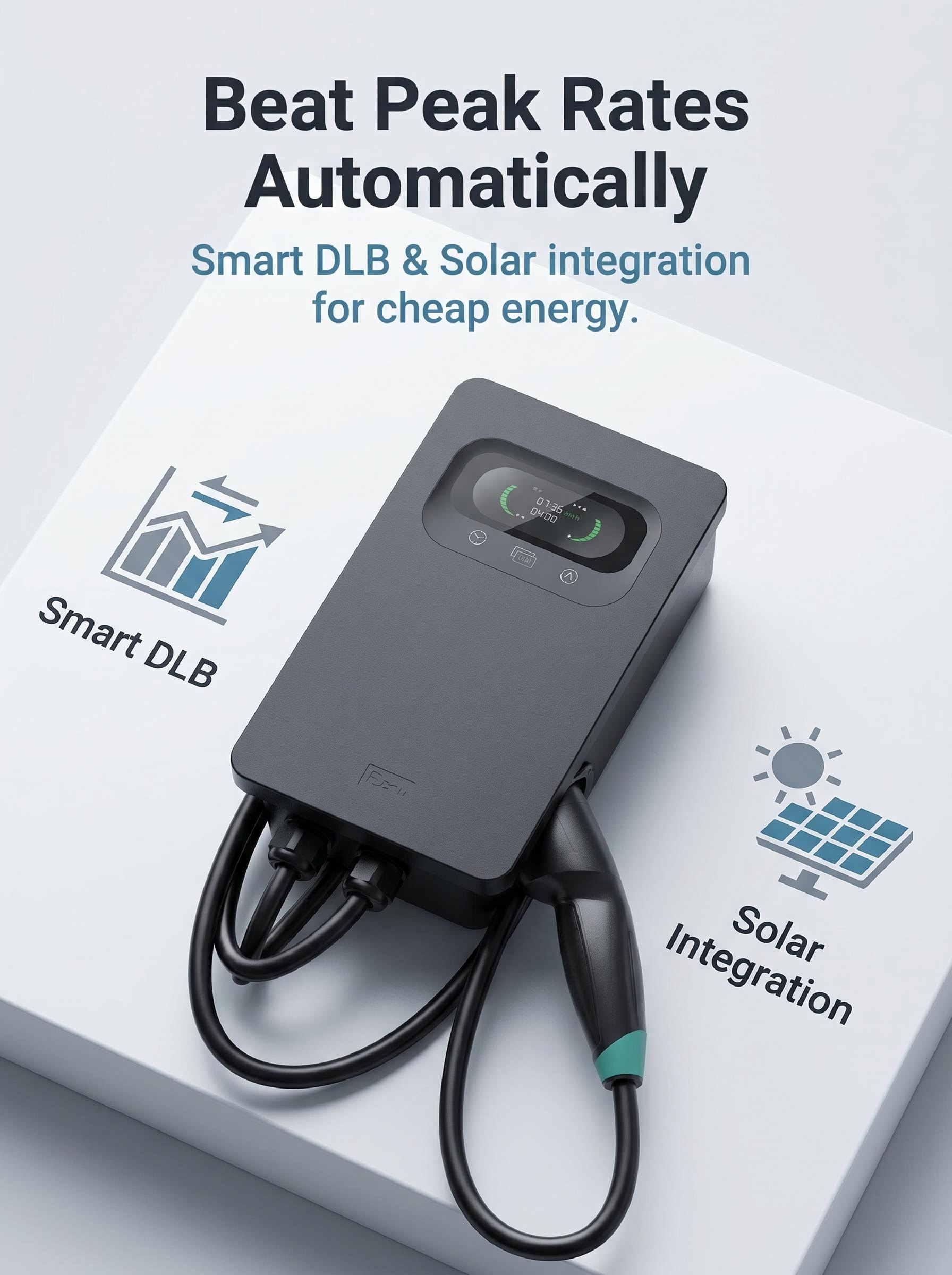

  • Dynamic Load Balancing (Optional): An intelligent feature that automatically adjusts power distribution in real-time, preventing electrical overload and optimizing energy use, especially when multiple vehicles are charging simultaneously or when integrating with solar power systems.

  • Ready to power your future?
    With proven reliability and a commitment to quality, the Volt-A-H0 smart wallbox is the smart choice for your EV charging needs. Contact us today for ODM/OEM inquiries or to place your order.
