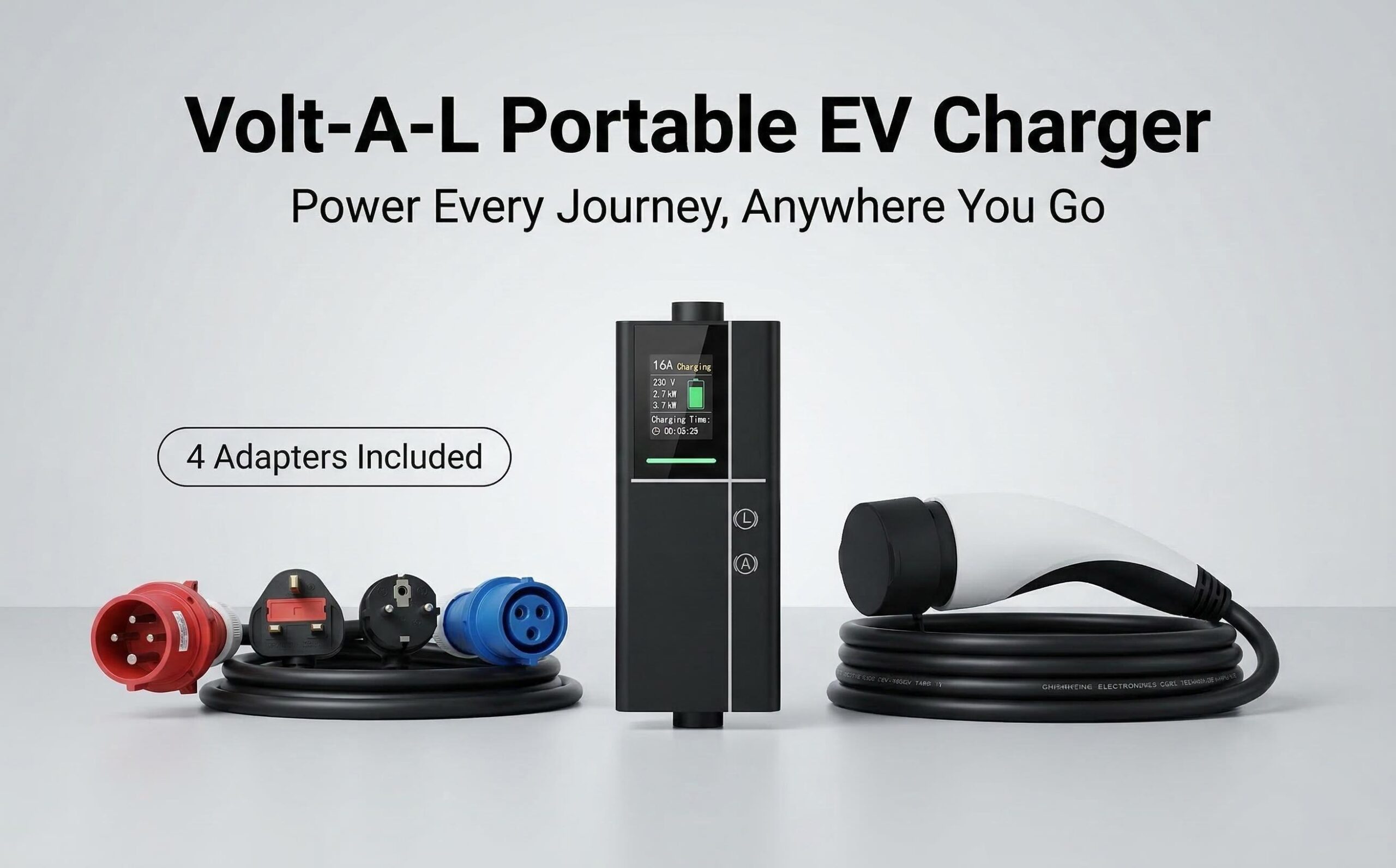

Adapts to Every Plug, Powers Every Journey Engineered for versatility, safety, and convenience, the Volt-A-L Portable EV Charger is your go-anywhere charging companion.

Charge freely at home, at work, or on the road-wherever you go, power follows.

Connector and Electrical	Connector Type	Type 2 Socket (with adapter kit for Household, Single-Phase Blue, Three-Phase 12A/22A plugs)
	Input Voltage	400 V (Operating Voltage), Single-phase / Three-phase adaptive
	Input current	16A/32A
	Rated frequency:	50/60 Hz
	Output voltage	AC220V ±10% (1-phase), AC380V ±10% (3-phase)
	Output Power	22 kW
Protection	Ingress Protection	IP64 (charger & control box)
	Impact Protection	IK08]
	Leakage protection:	Type A+ (DC 6 mA built-in)
	Operating temperature:	-40°C ~ +60°C
	Operating humidity:	＜93%＞ RH±3 % RH
	Altitude:	≦2000m
	Storage temperature:	-40°C to +80°C
	Electrical protection:	Over/under voltage, overcurrent, short circuit, over temperature, leakage protection
	Certificate	Complies with IEC 61851 / IEC 62752 (Implies CE)
Functions	Charge Mode	Mode 3
	Internet connection:	Wi-Fi (Optional)
	Display:	LCD / LED screen (shows power, time, voltage, temp, kWh)
	Dynamic load balance	Automatic Plug Identification (Intelligent power adaptation)
	Metering	Yes (displays energy in kWh via screen/app)
Mechanical	Dimensions product without cable	400*380*90mm
	Weight gross	≦5kg

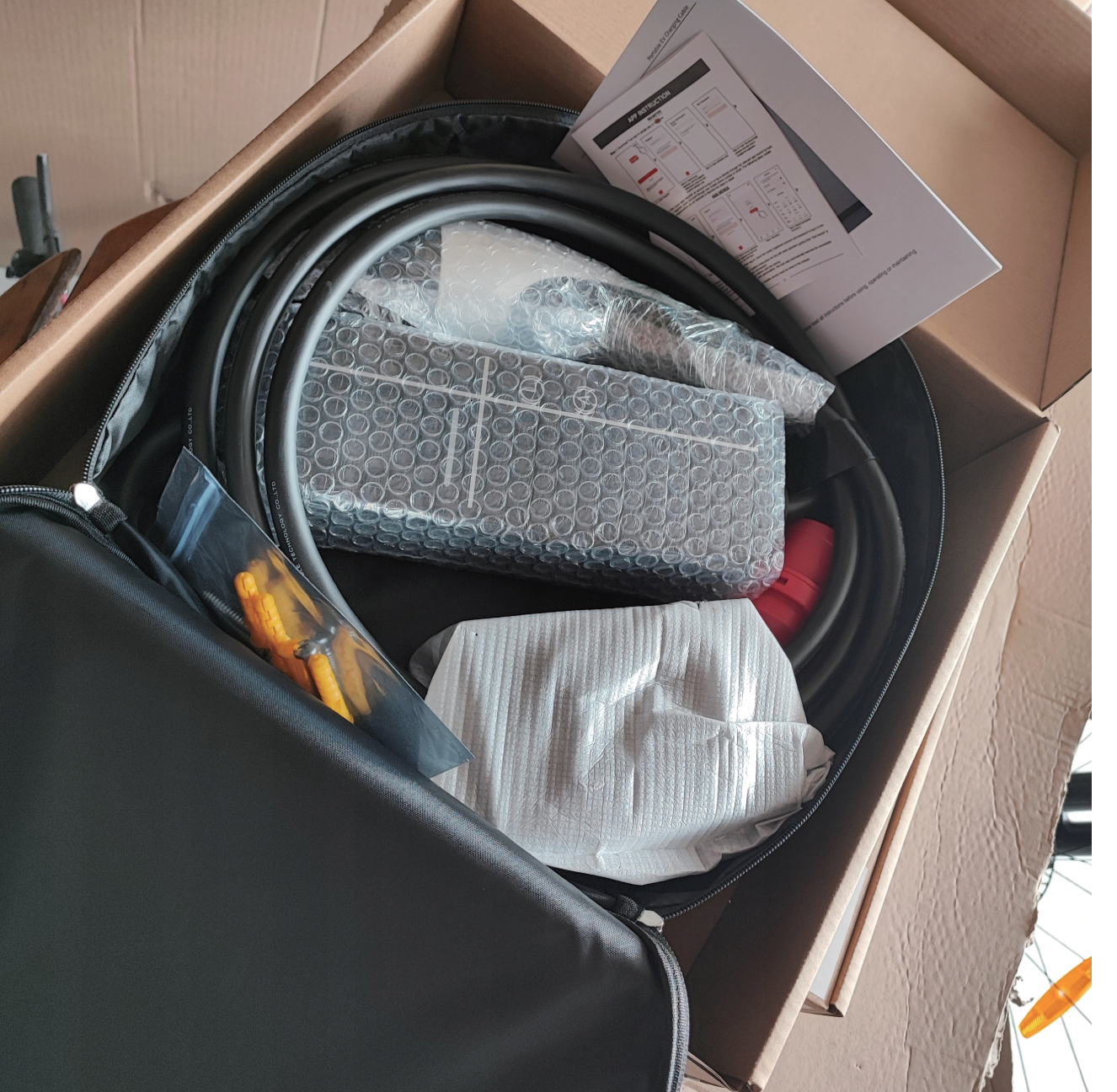

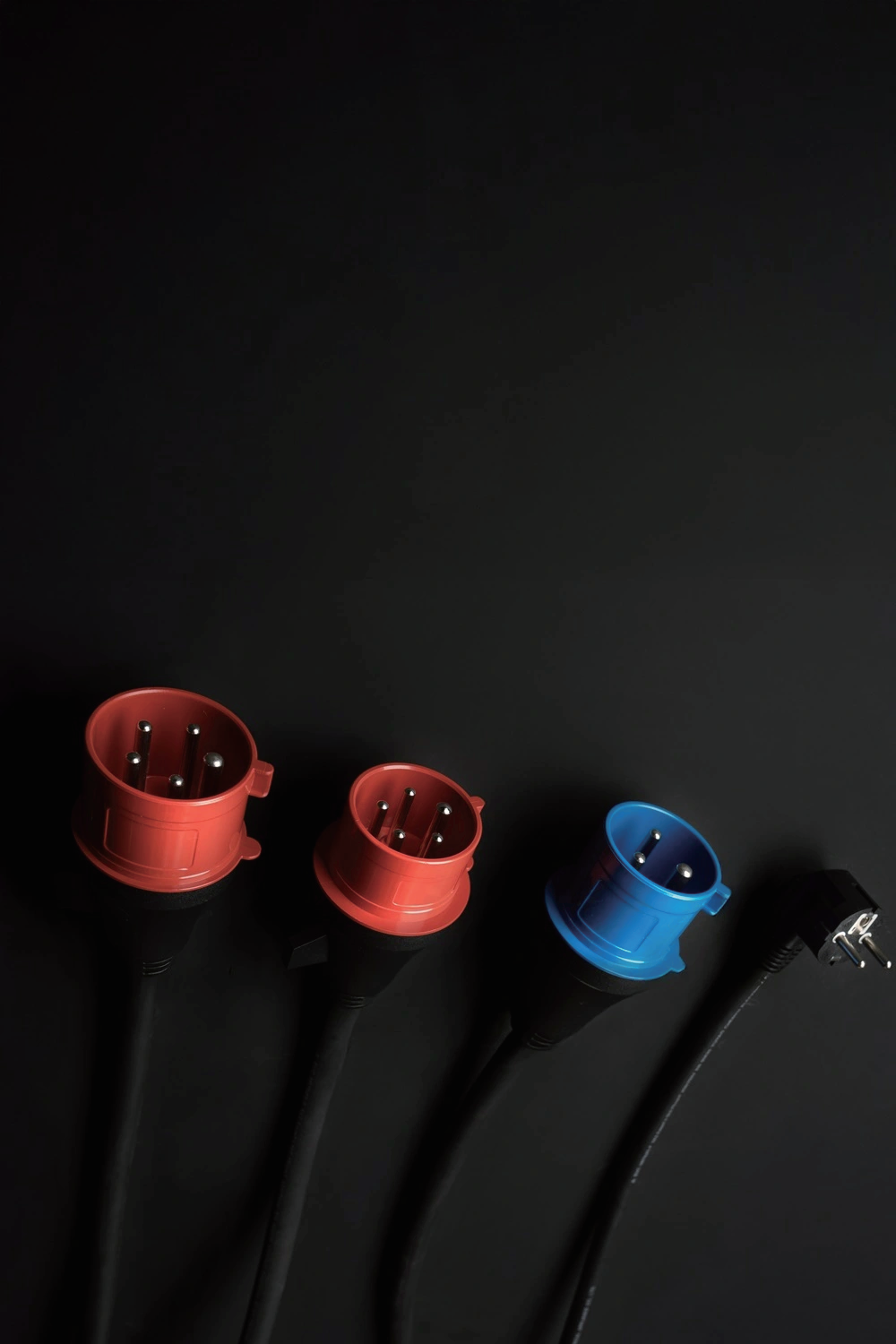

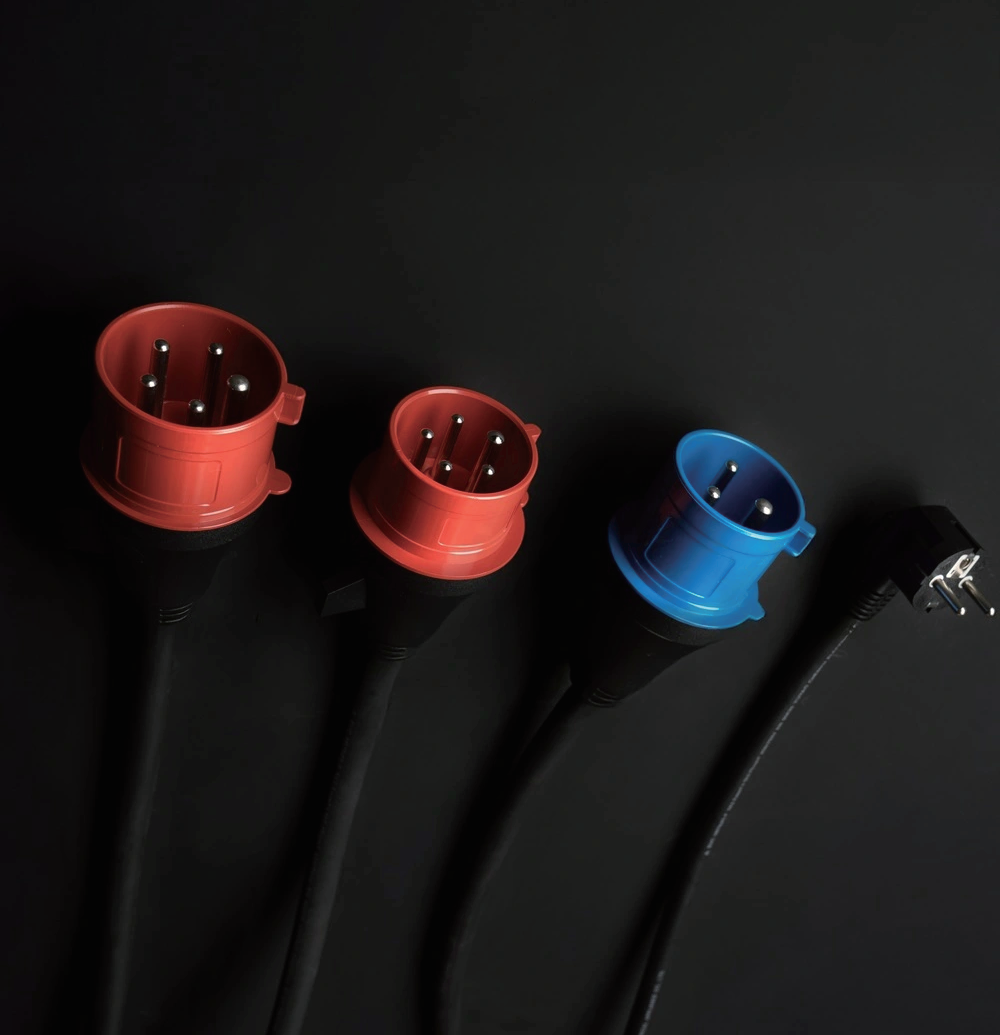

Complete Adapter Kit for Full Compatibility:

Household Socket Plug (3.6 kW)

Single-Phase Blue Plug (Up to 7 kW)

Three-Phase 16 A Plug (Up to 11 kW)

Three-Phase 32 A Plug (Up to 22 kW)

With this range of plug options,everything youneed is included-no extraequipment required.

Despite its powerful features, this charger is incredibly easy to use (no Wi-Fior app required). Simply plug it into a wall socket, plug the other pluginto your car, and the car will begin charging (unless any charging plansare enabled in the car or other settings are configured in the app).

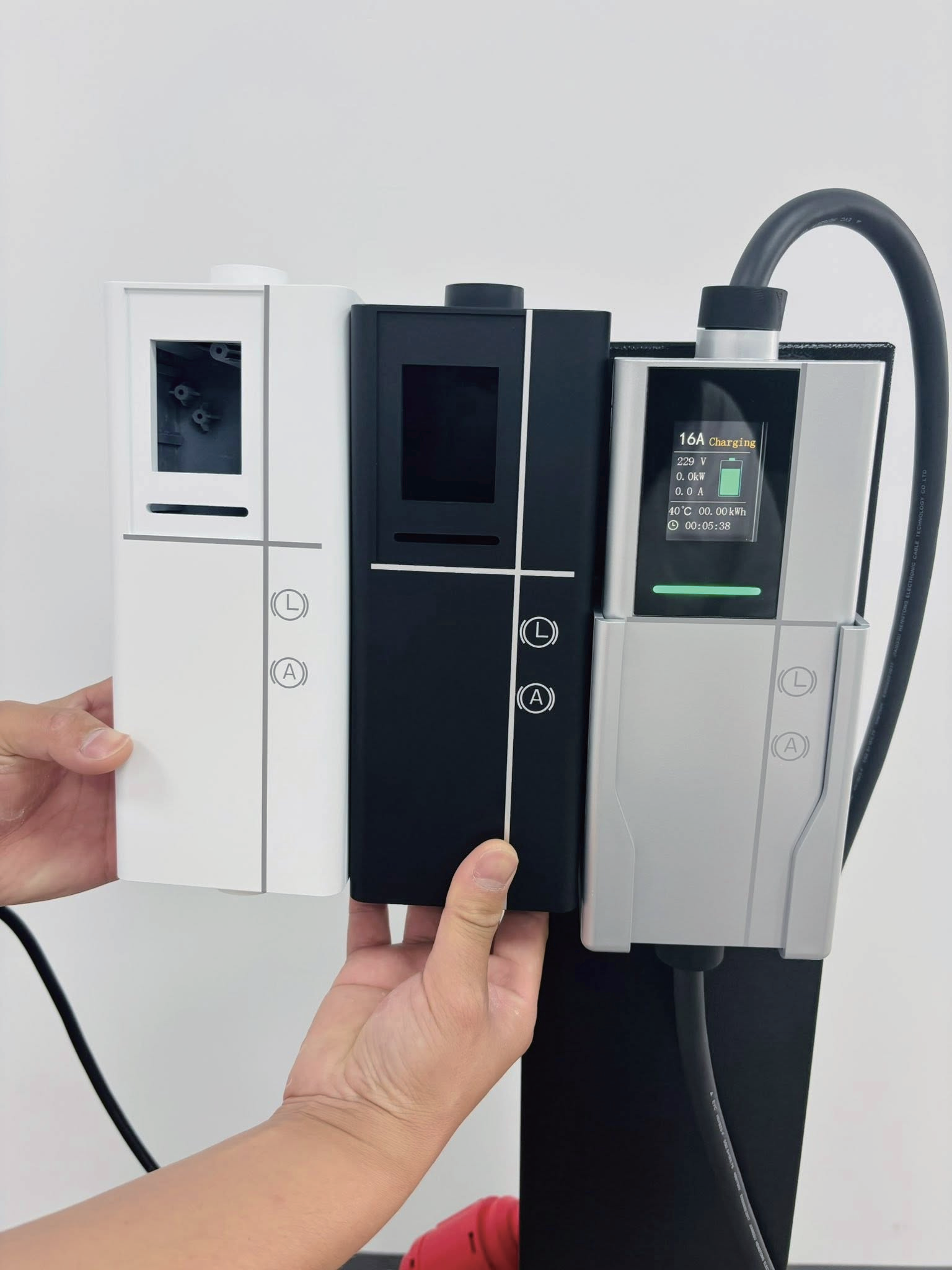

A charger with a clear display and support for a customizable companion app.

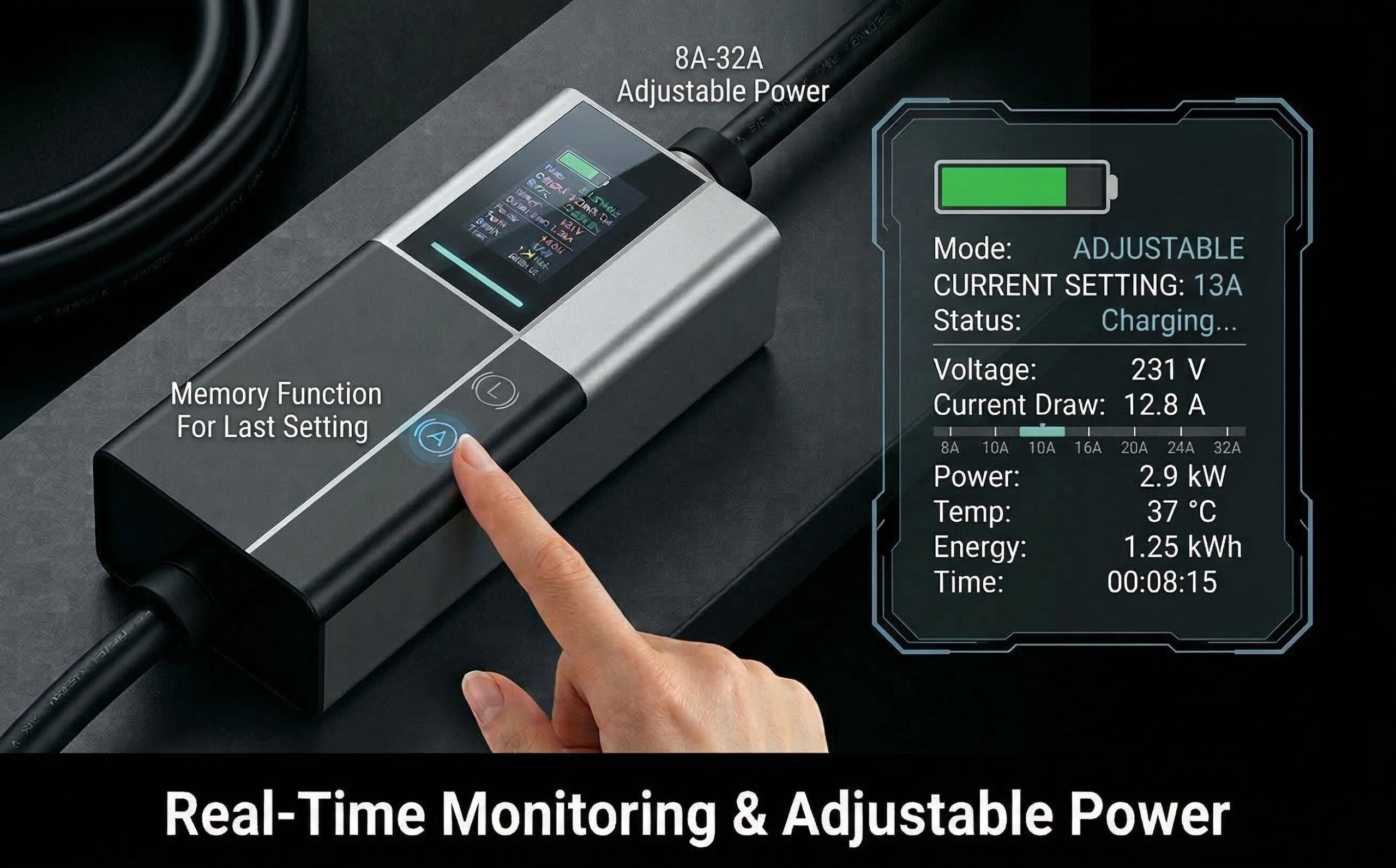

On the display and smartphone app, we can see:

Charging power (Amps and Kilowatts)Charging time (hours:minutes:seconds)Anode voltage (Volts)

Device temperatureEnergy input in kilowatt-hours (kWh).

The app also allows you to set a delayed start (e.g., automatically startcharging after 4 hours).

We can change the charging power via the charger or the app.

Possible charging power (8A-32A in the application, in 1A increments,charger ratings 8, 10, 13, 16, 32A)- The charger has a memory function,remembering the last power setting, eliminating the need forrepeated adjustments.

One charger. Every connection. Total charging freedom.
