Certified Safety, Ultimate Flexibility. The Premier OEM/ODM Choice for Global Fleets & Retailers
-

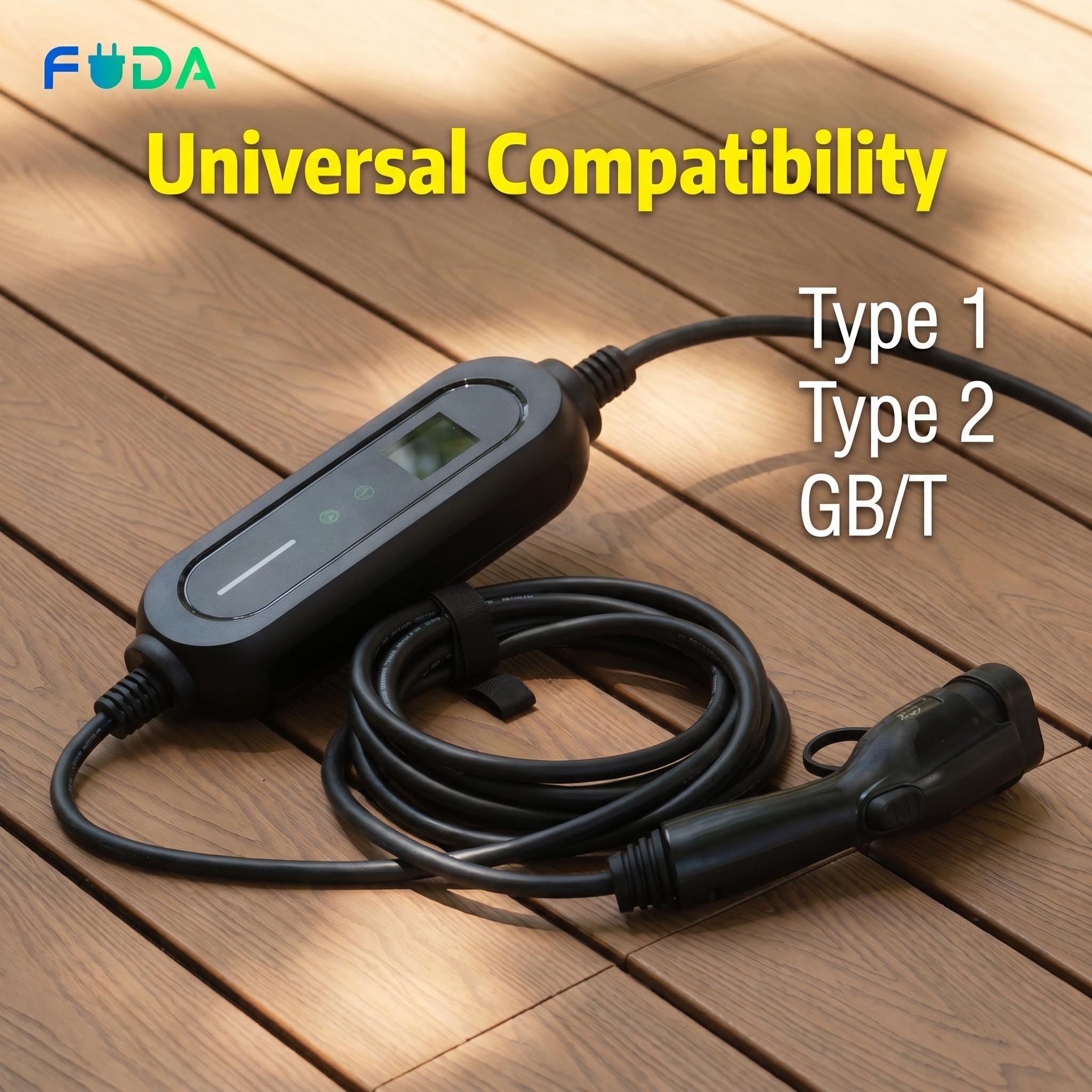

Global Compatibility: Fully supports Type 1, Type 2, and GB/T standards.
-
Certified Security: Certified by TUV, CB, CE, UKCA, REACH, and RoHS.
-
Heavy-Duty Protection: IP66 control box & IP54 charging plug for all-weather durability.
-
Flexible Power: Smart adjustable current from 6A to 32A to fit any grid environment.
Description
Technical Specifications
| Specification | Details |
| Product Model | Volt-A-T0 Basic Portable EV Charger |
| Connector Type | Type 1 / Type 2 / GB/T (Customizable Options) |
| Input Voltage | 230V AC |
| Input Current Options | 6A / 8A / 10A / 13A / 16A / 20A / 24A / 32A |
| Rated Frequency | 50Hz ± 2% |
| Output Voltage | 230V ± 10% (1-Phase) |
| Max Output Power | 16A (for 3.5kW) / 32A (for 7kW) |
| Ingress Protection (IP) | IP66 (Control Box) / IP54 (Charging Plug) |
| Impact Protection | IK08 |
| Leakage Protection | Type B (AC 30mA + DC 6mA) |
| Operating Temperature | -25°C to +50°C |
| Storage Temperature | -40°C to +80°C |
| Electrical Safeties | Overcurrent, Overvoltage, Overtemperature, Relay adhesion, PE Loss Alarm |
| Smart Functions | Scheduled Delayed Charging, Adjustable Current, Dynamic LCD Display |
| Standards & Certificates | IEC 62196-2, IEC 62752, TÜV Rheinland, CE, CB, UKCA, REACH, RoHS |
| Gross Weight | 5 kg |
Core Advantages – Why Choose Volt-A-T0
🔒 Top-Tier Safety & Full Certification Backing
Security is non-negotiable for commercial buyers. Volt-A-T0 Basic is rigorously tested and officially certified by TÜV Rheinland, CE, CB, and UKCA.
-
Comprehensive Leakage Protection: Equipped with Type A + DC 6mA leakage protection, real-time outlet monitoring, and advanced multi-layer electrical safeguards (Overcurrent, Overvoltage, Overtemperature, and PE Loss Alarm).
-
Premium Component Materials: Built with authentic TUV-certified cables and high-grade TPU materials ensuring superior insulation and flame retardancy.

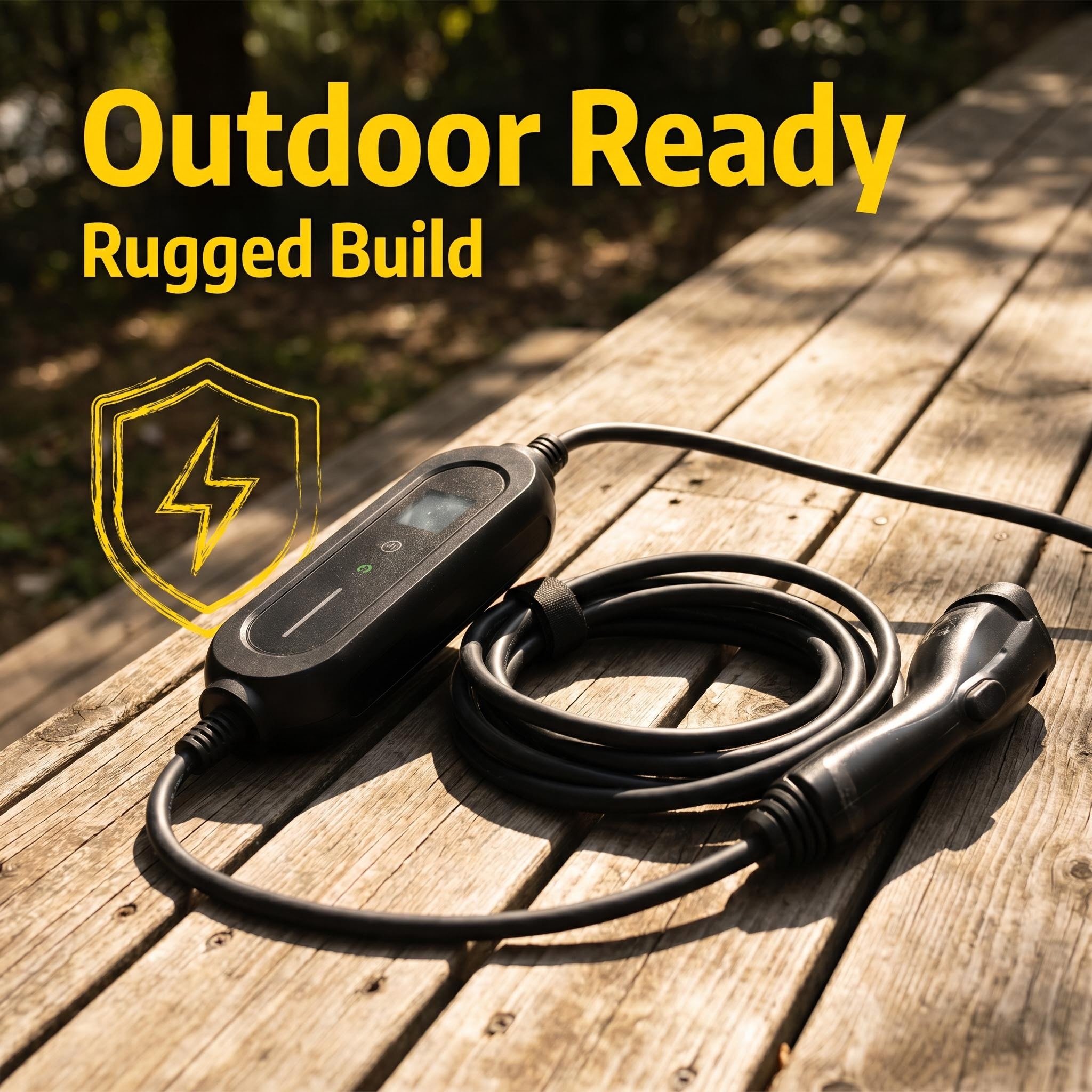

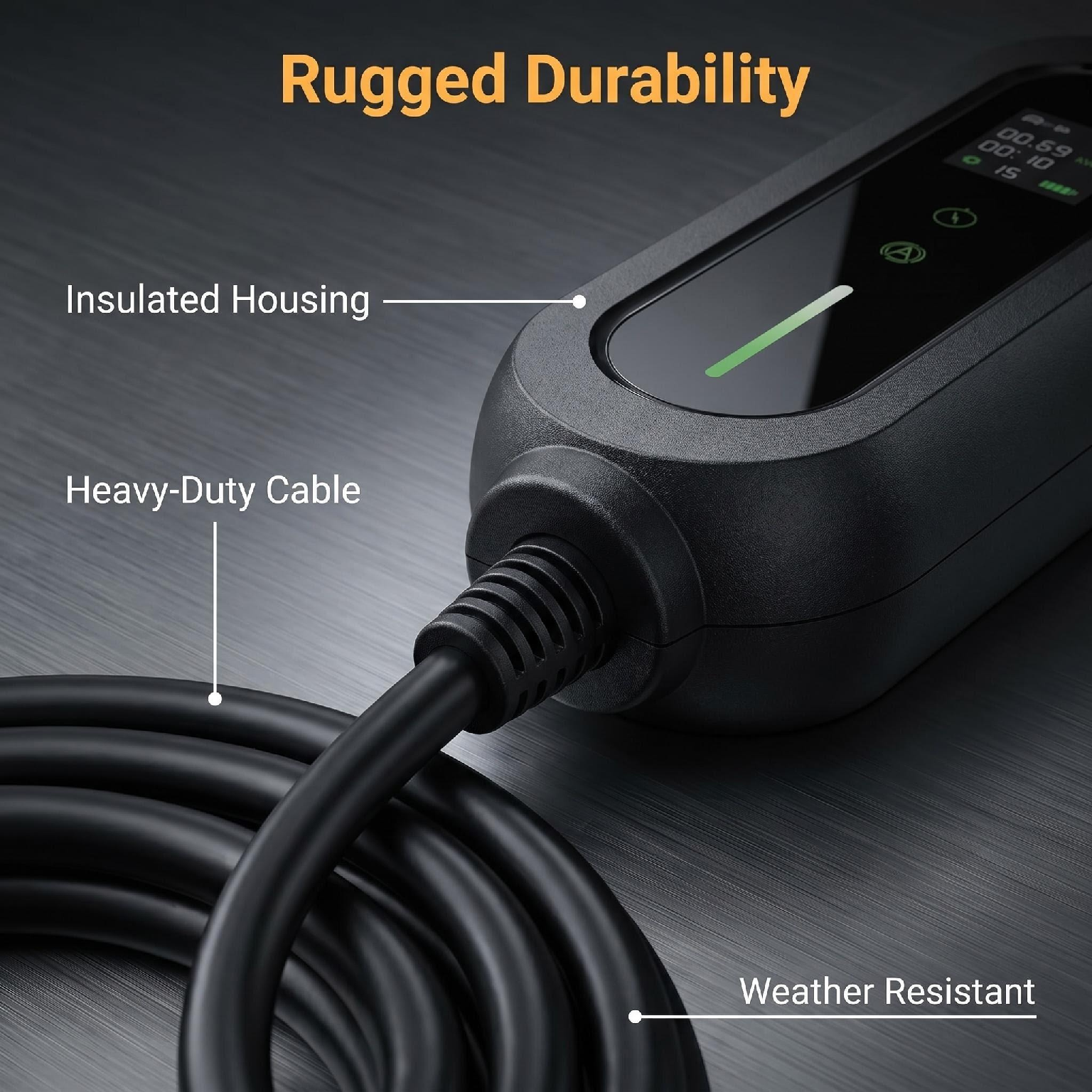

🌧️ Industrial-Grade Durability (IP66 Waterproof & IK08 Impact)
Engineered for secure charging anywhere—from scorching deserts to freezing downpours.
-
IP66 Control Box & IP54 Plug: Highest-in-class dust and waterproof protection ensures continuous, worry-free performance for business fleets and daily commutes.
-
IK08 Robust Housing: Shockproof and resilient against rugged drop-testing and external impacts.
⚡ Smart UI & Plug-and-Play Simplicity
-

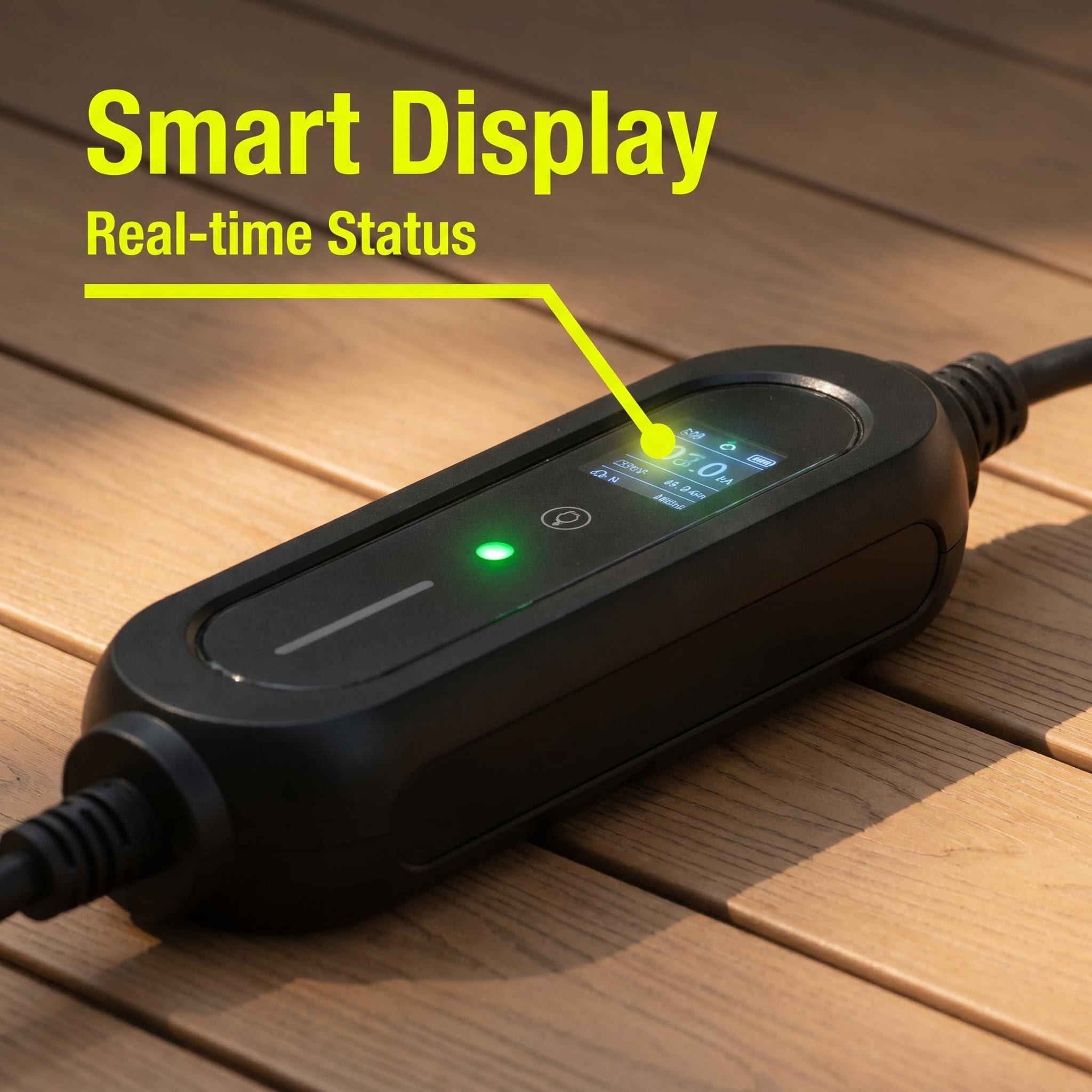

Dynamic LCD Display: Real-time visibility on charging status through crisp, clear graphics and intuitive dynamic icons.
-
Scheduled Charging & Current Adjustability: Easily schedule charging times to leverage off-peak electricity rates. One-touch current switching (6A to 32A) gives end-users ultimate control over their charging speeds.
Applications & Commercial Value
-
Business Fleets: A dependable backup charging solution that keeps electric vehicle fleets running on time, everywhere.
-
EV Charging Retailers & Distributors: A certified, low-complaint product with high-end premium packaging ready to boost your retail brand.
-
Residential & Travel: Compact, plug-and-play design that makes it the perfect travel companion for worry-free road trips.
B2B Customization Capabilities
🛠️ Global Plug Customization & OEM Support
We understand that different regions require distinct standards. We provide comprehensive customization services for global importers:
-

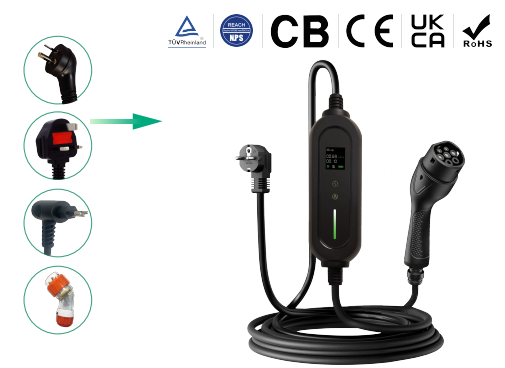

Multiple Plug Options: Available with Euro plug, UK plug, Schuko plug, and tailored localized wall-plug options.
-
Logo & Branding: Support custom logo engraving on the control box, custom laser printing on the charging gun, and tailored brand packaging design.
-
Cable Length Options: Standard cable lengths available, with custom extensions supported for commercial orders.
