Description

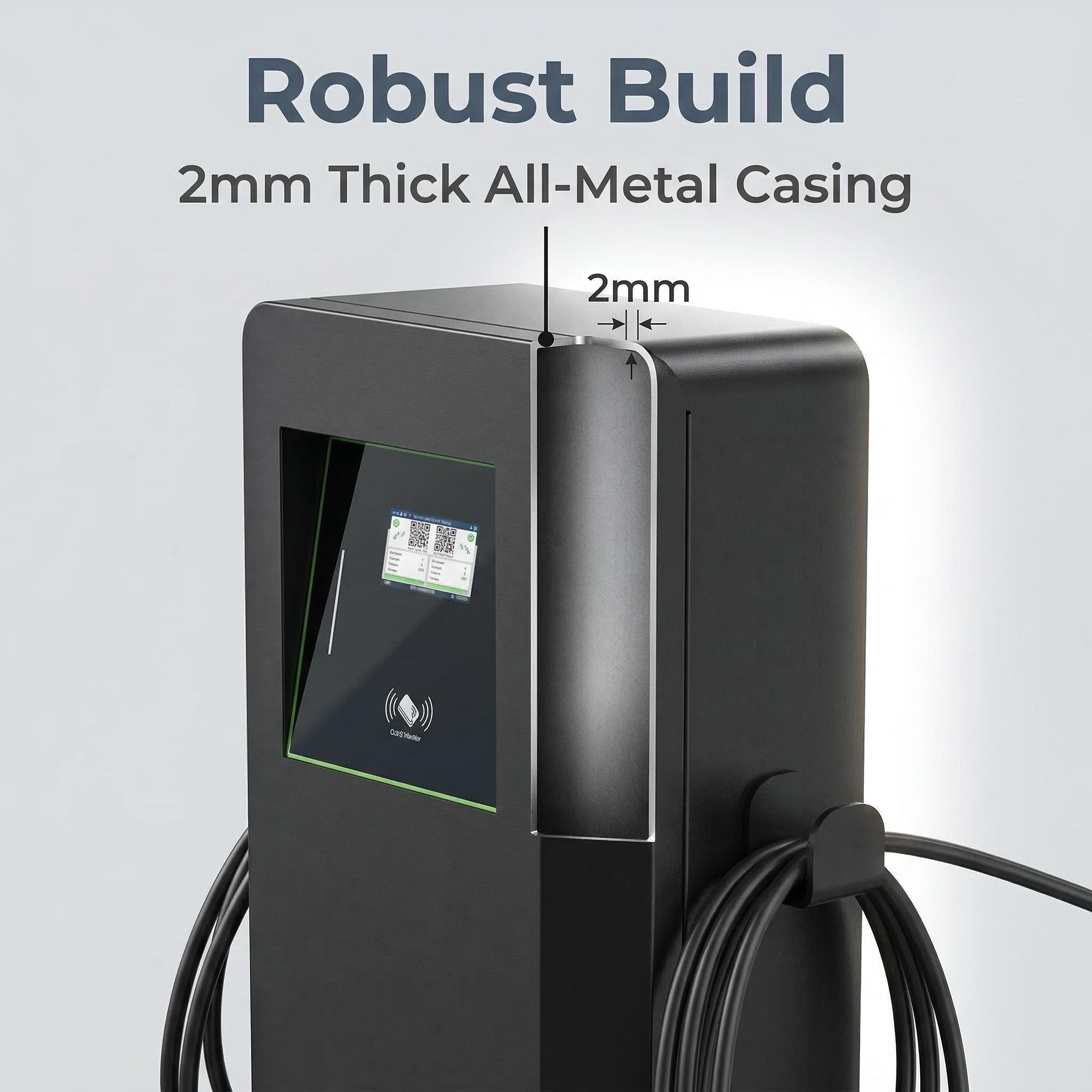

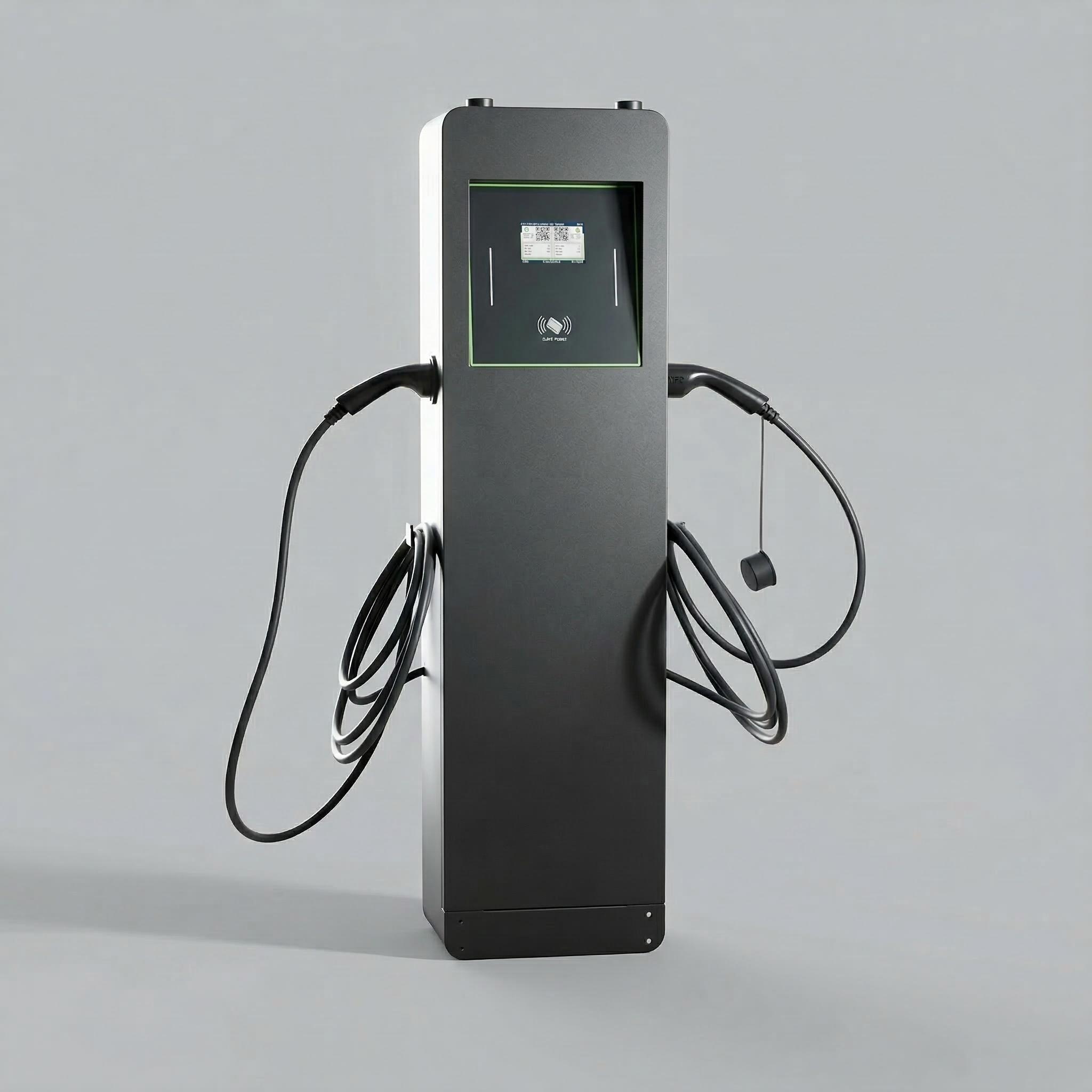

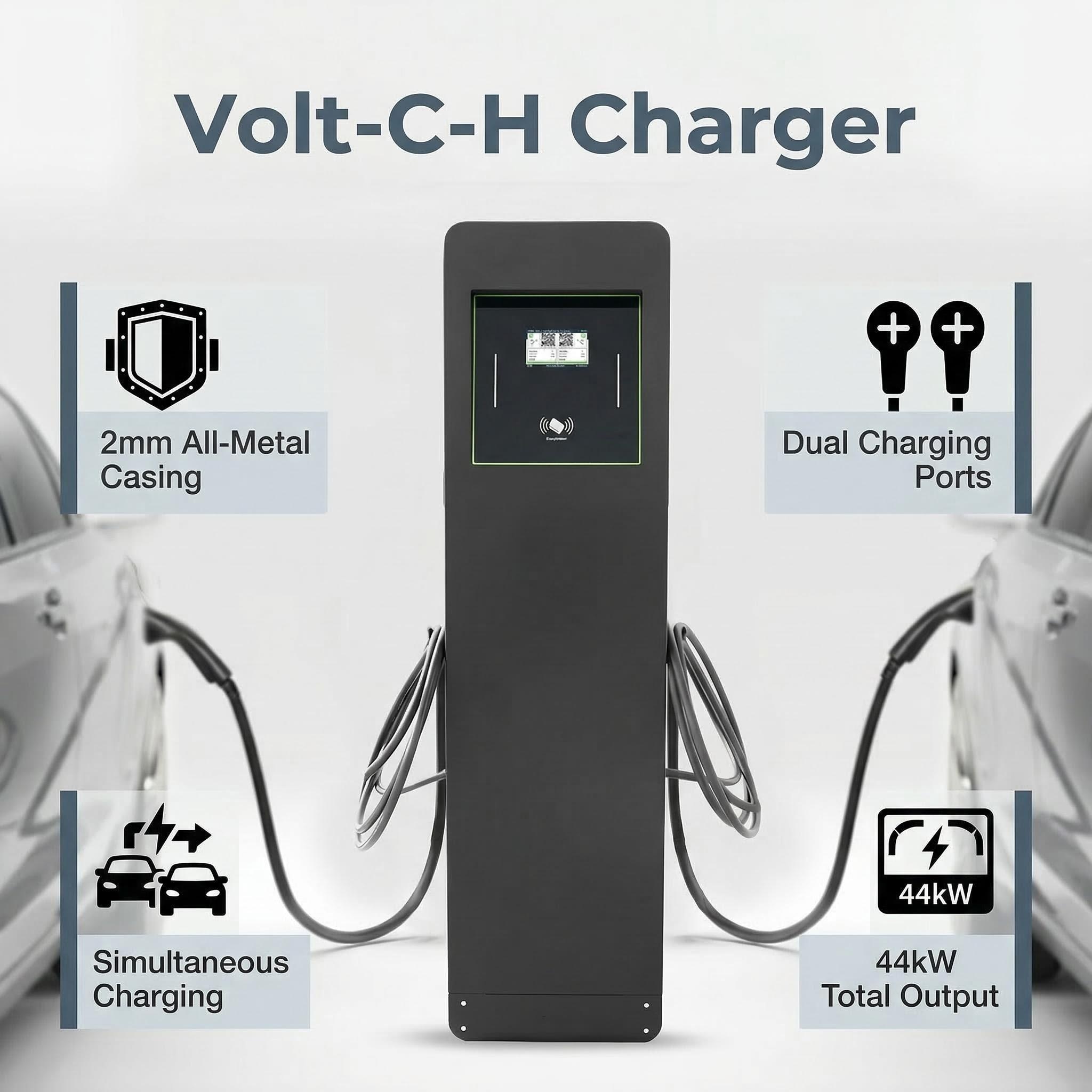

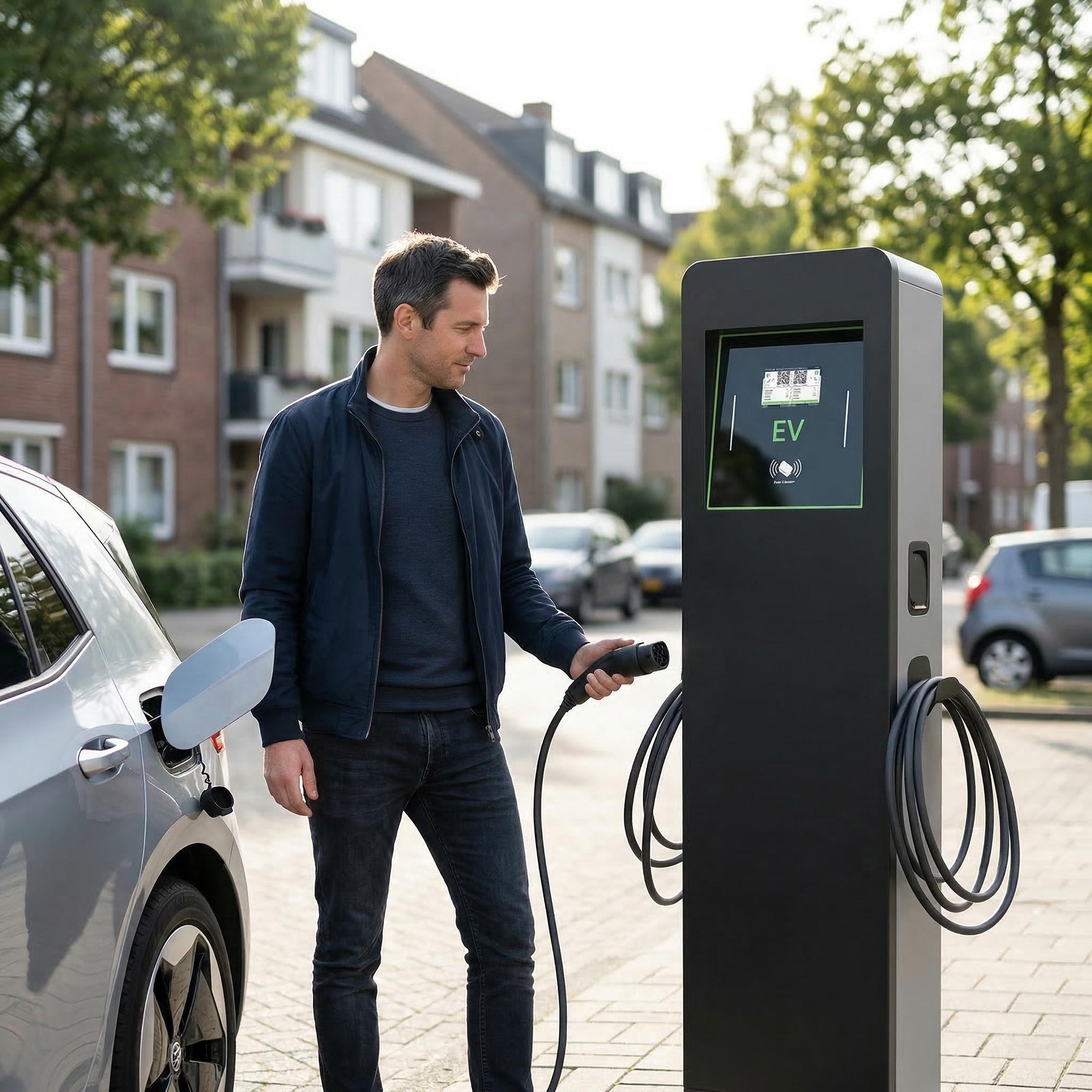

This standalone electric vehicle charging station features a robust all-metalcasing (2mm thick) and comes with two charging cables, allowing simultaneouscharging of two electric vehicles. It uses AC power with a maximum totaloutput of 44 kW (2 x22 kW).
| Connector and Electrical | Connector Type | Type 2 (IEC 62196), compatible with GB/T 20234, IEC 61851, SAE J1772 | |
| Input Voltage | AC 220V±10% (1-phase) / AC 380V±10% (3-phase) | ||
| Rated frequency: | 45 – 65 Hz | ||
| Output voltage | 220VA ± 20% (1-phase) / 380VA ± 20%(3-phase) | ||

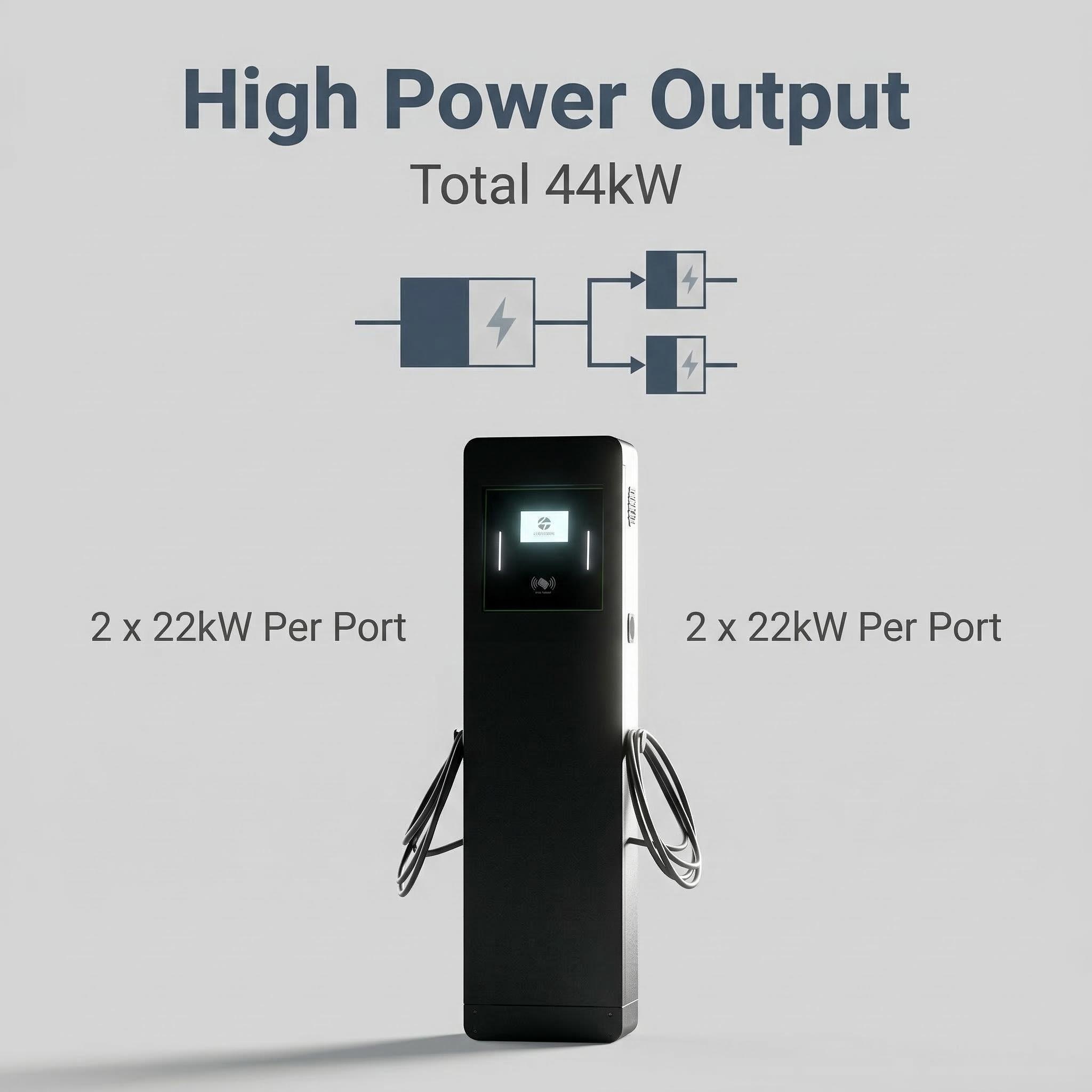

| Max Output Power | 44 kW (Total power with intelligent port allocation) | ||
| Protection | Ingress Protection | ≥ IP55 | |
| Impact Protection | Not specified | ||
| Leakage protection: | Type A + 6mA DC (RCD) | ||
| Operating temperature: | -30°C ~ +45°C | ||
| Operating humidity: | 5% ~ 95% RH (non-condensing) | ||
| Altitude: | ≤ 2000 m | ||
| Storage temperature: | -30°C ~ +60°C | ||
| Electrical protection: | Overcurrent, overvoltage, undervoltage, short circuit, ground fault, over-temperature, and surge protection | ||
| Certificate | IEC 61851-1, CE, UKCA, TÜV | ||
| Functions | Charge Mode | Charge&Play;App;RFID | |
| Internet connection: | Wi-Fi / 4G (optional) | ||
| External communication: | OCPP 1.6J | ||
| Display: | LCD + LED indicators | ||
| Communication protocol: | OCPP 1.6J | ||

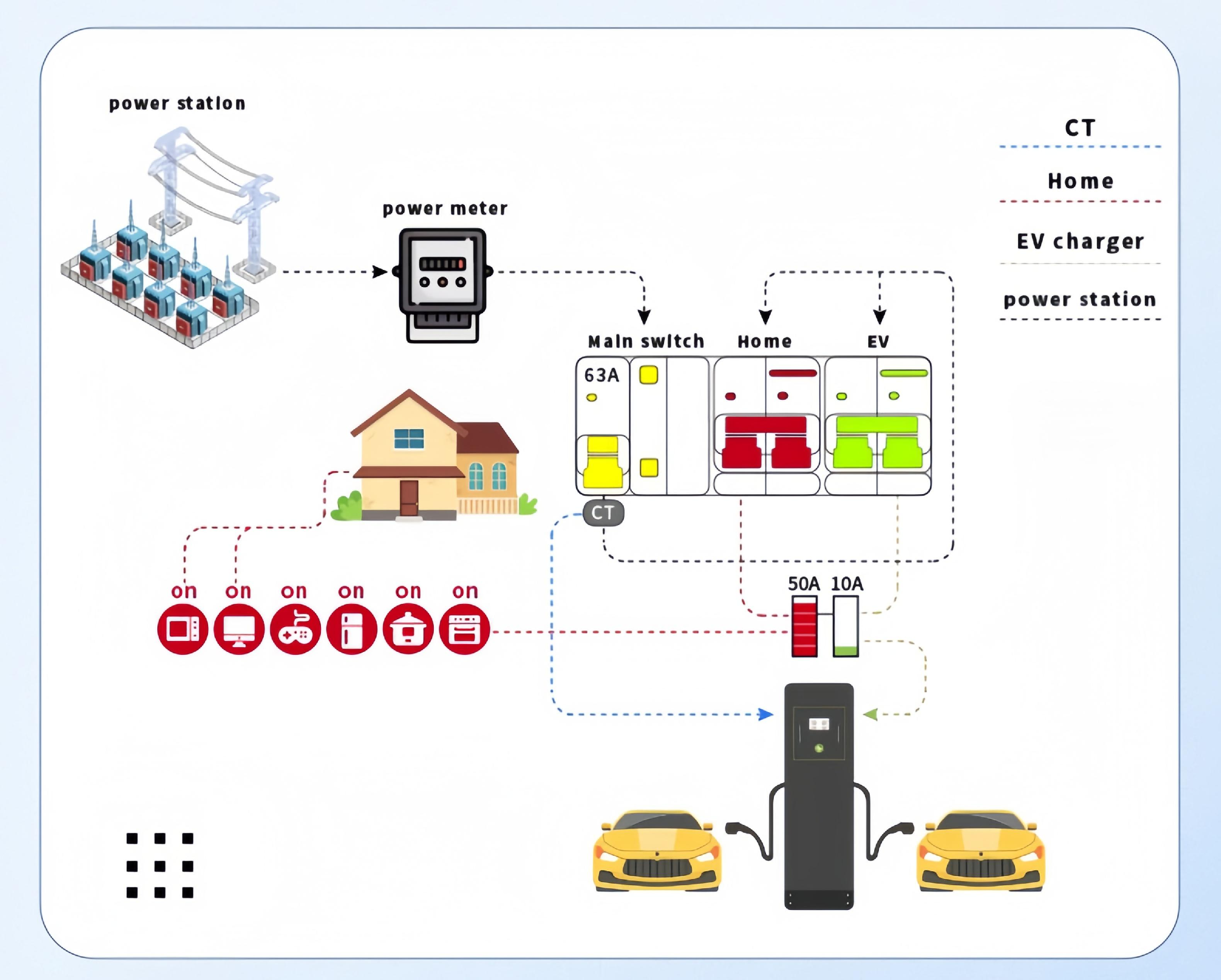

| Dynamic load balance | Dynamic Load Management (Home Load Balancing, Optional) | ||
| Solar charging | Yes | ||
| Metering | Integrated energy meter (MID compliant) | ||
| Dimensions product without cable | 500(H) x 400(W) x 230(D) mm | ||
| Mechanical | Weight gross, kg | ~43 kg | |
Key Features
High Power Output: Available in14kW, 22kW, and 44kW options for fastcharging of various vehicles.
Multi-Interface Compatibility:Supports Type 1, Type 2, and GB/Tconnectors, suitable for global markets.
Commercial Operation Features:OCPP 1.6 protocol support, POS system,and multiple payment methods (VISA,MasterCard, Apple Pay, Google Pay,PayPal).
Durable Design:Carbon steel casing withIP55 rating, waterproof, dustproof,UV-resistant, and operates in extremetemperatures (-40°C to +60°C).
Smart Control and Monitoring: 4G,WiFi,and LAN connectivity forremote monitoring and adjustable charging currents via OCPP platform.
User-Freiendly Operation: 5-inch touchscreen and LED indicatoorsfor intuitive charging status and easy operation.Wide Range of Applications: Ideal for both indoor and outdoor charginglocations, supporting simultaneous charging for multiple vehicles.
IdealFor
Residential Charging: Ideal for single EVowners, this 44kW EV charger combines acompact design with high-power charging,offering reliable, convenient home charging.
Workplace Charging: As a 2x22kW dual-gun station, it fits offices or factories, lettingemployees charge their EVs effortlesslyduring work hours.

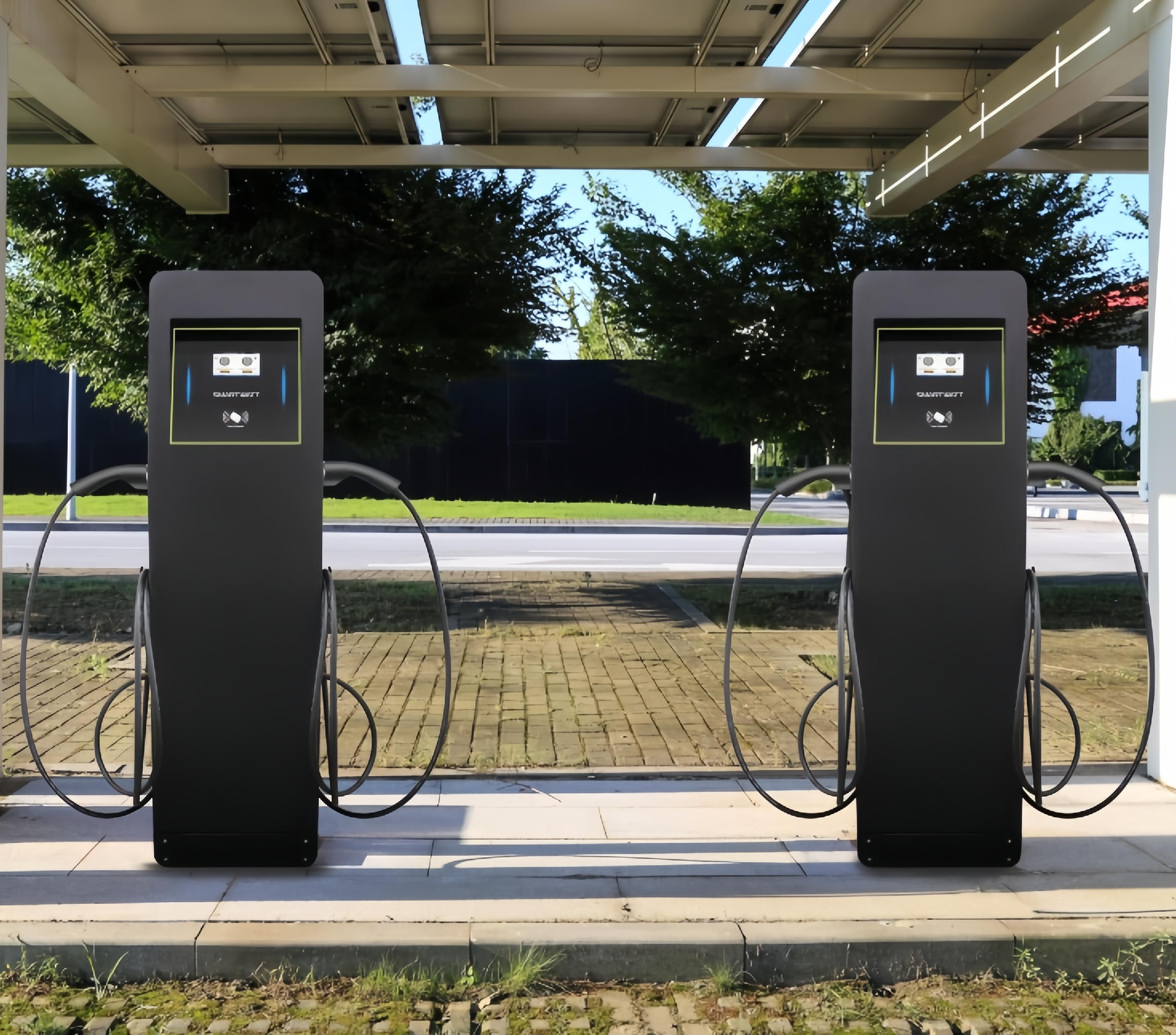

Public Charging: Suitable for road-sidespots or public parking lots, it provideson-the-go EV owners with easy access tofast charging.
Fleet Charging: Perfect for businesseswith EV fleets. Supporting 7kW/11kW/22kW/44kW, it charges vehicles quickly to keepfleets operational and productive.
