- Universal Standard Bridge: Specifically designed to convert GB/T charging signals for use with CCS1 vehicle interfaces.
-

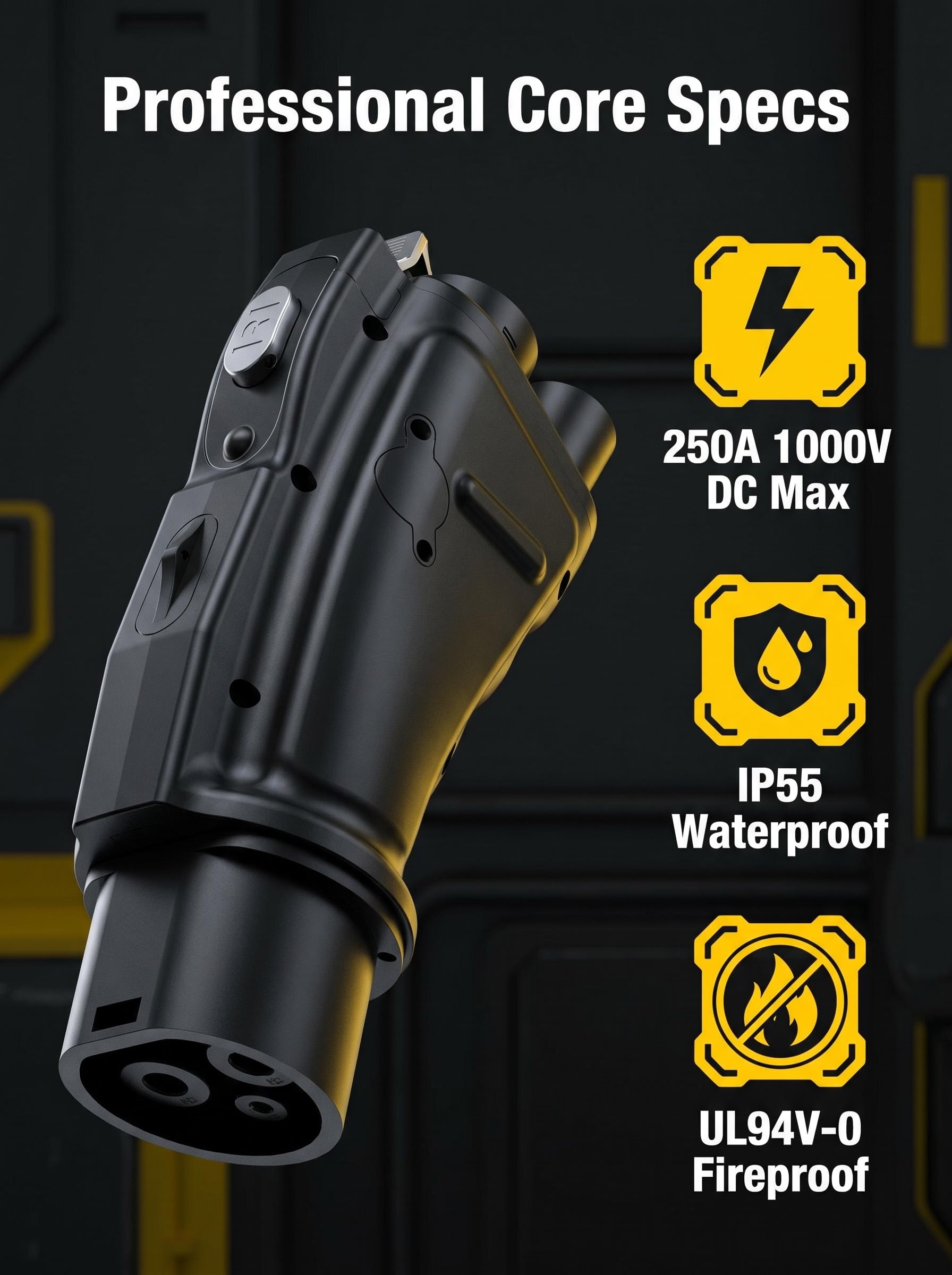

High-Power Capacity: Supports a rated current of up to 250A and a rated voltage of up to 1000V DC.
-
Industrial Durability: Constructed with a thermoplastic plastic shell featuring a UL94V-0 fireproof grade and silver-plated copper alloy conductors.
-
Compact & Reliable: Weighs only 1.42kg with a compact design of 283.86 x 92.67 x 153.22mm for easy handling
Description

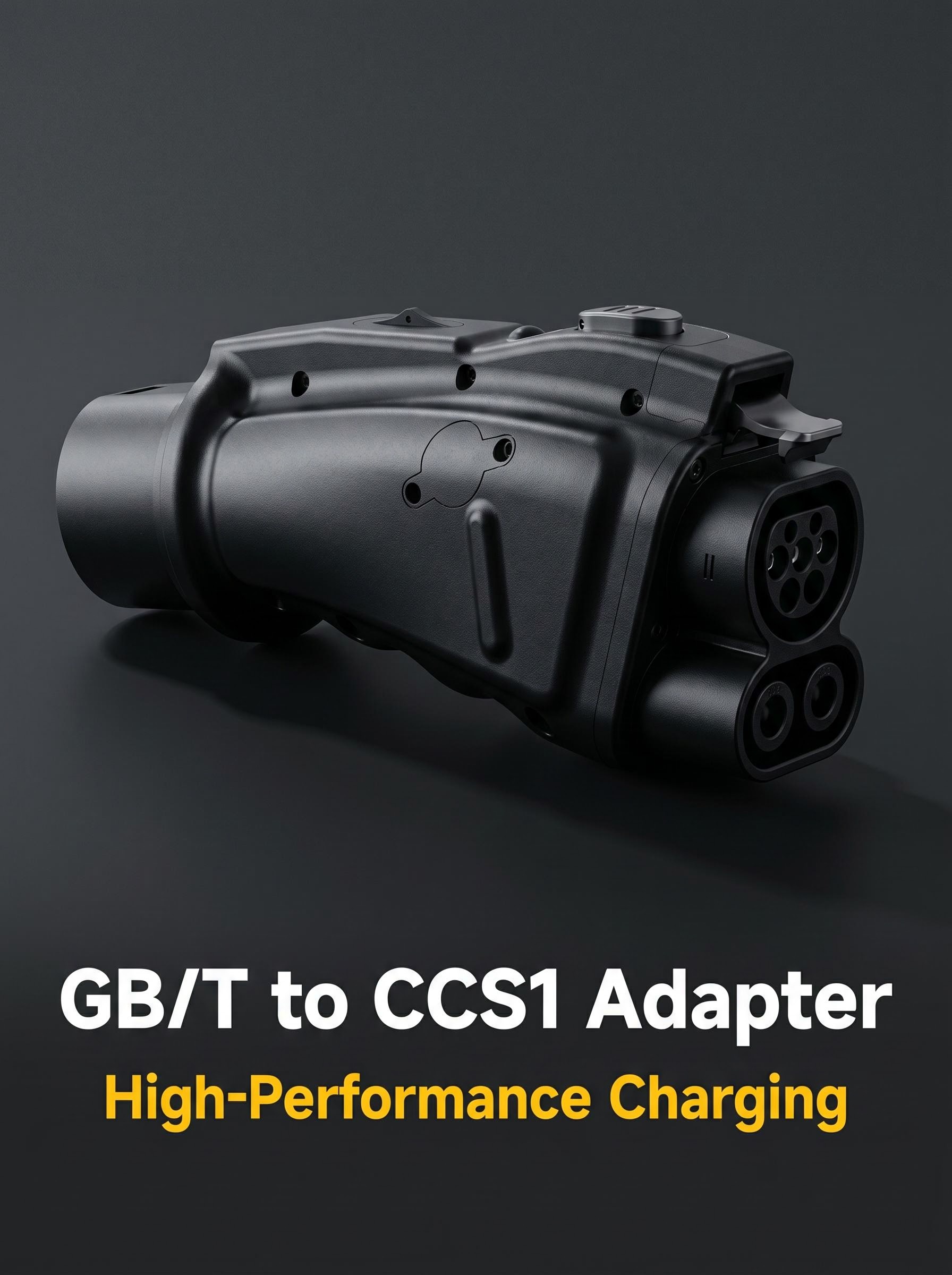

The FUDA Volt- GBT to CCS1 Adapter is a high-performance conversion solution designed to bridge the gap between GB/T and CCS1 charging standards. Engineered for efficiency and reliability, this adapter allows vehicles equipped with CCS1 charging ports to utilize GB/T DC fast charging infrastructure with ease. Part of the FUDA Volt Series, it ensures professional-grade durability and safety for your EV charging needs.
Technical Specifications
| Feature | Specification |
| Model | Volt- GBT to CCS1 Adapter |
| Rated Current |
250A Max |
| Rated Voltage |
1000V DC Max |
| Contact Impedance |
≤ 0.5 mΩ |
| Operating Temperature |

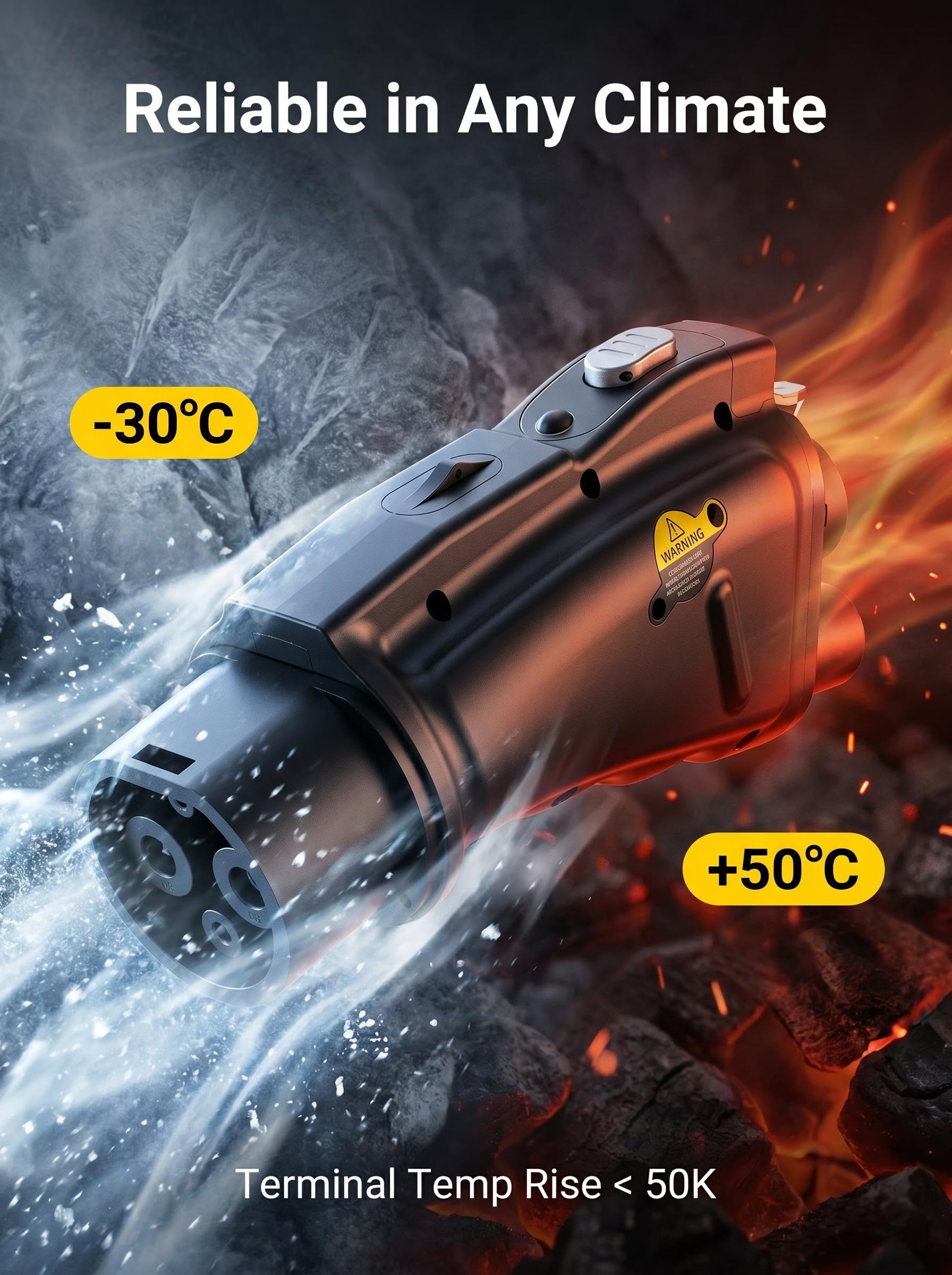

-30°C to +50°C |
| Ingress Protection |
IP55 (mating) |
| Insertion Force |
< 140N |
| Net Weight |
1.42kg |
Operating Instructions
-
Usage Method: Ensure both the charging station and vehicle port are clean before insertion. Align the connector according to the structural guides on the adapter.
-
Safety Precautions: The adapter features a thermal protection mechanism that maintains a terminal temperature rise of <50K during operation. Do not force insertion if resistance is encountered; ensure the connection is fully mated to engage the IP55 protection.
-
Storage: When not in use, store the adapter in a dry environment to maintain the integrity of the thermoplastic shell and electrical contacts.
