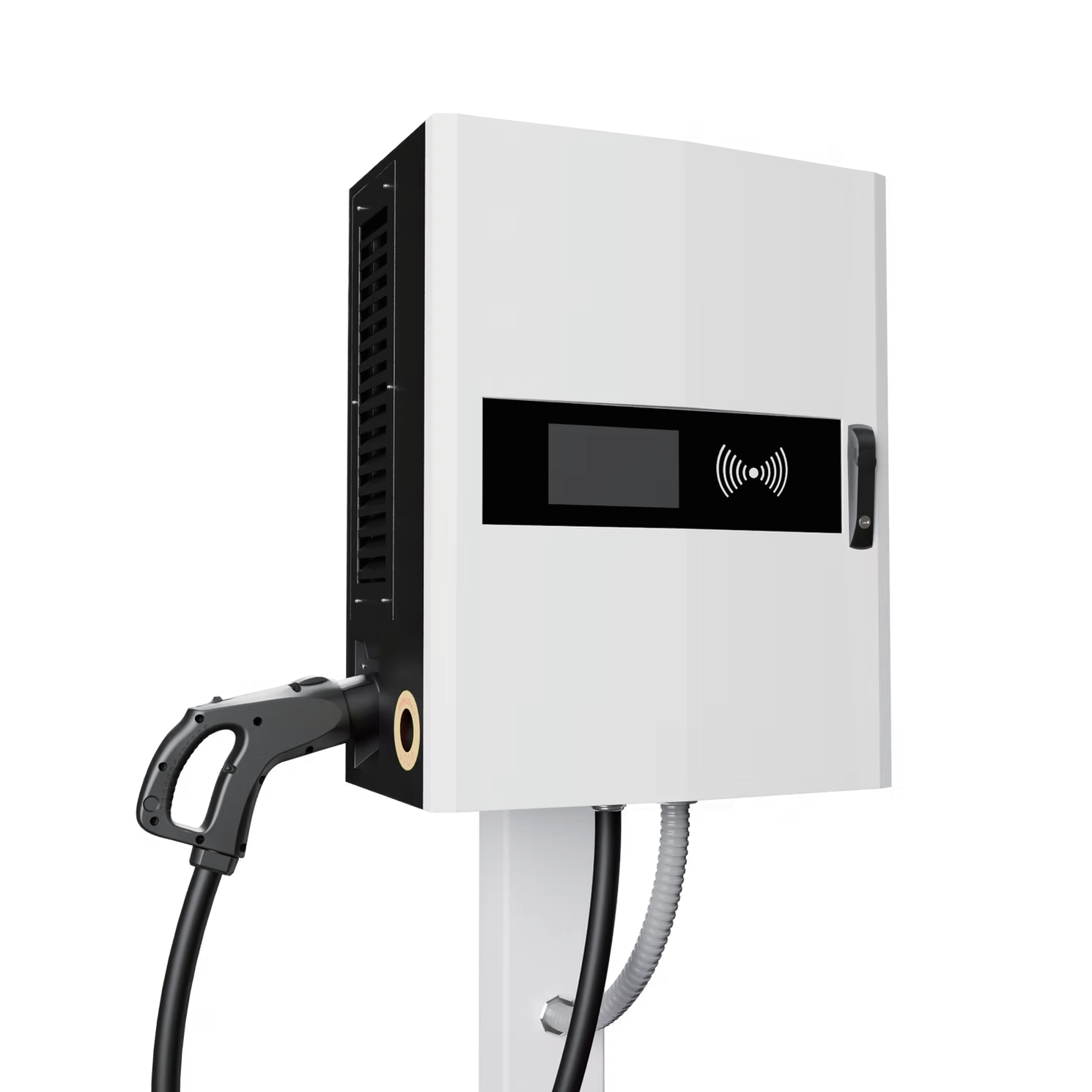

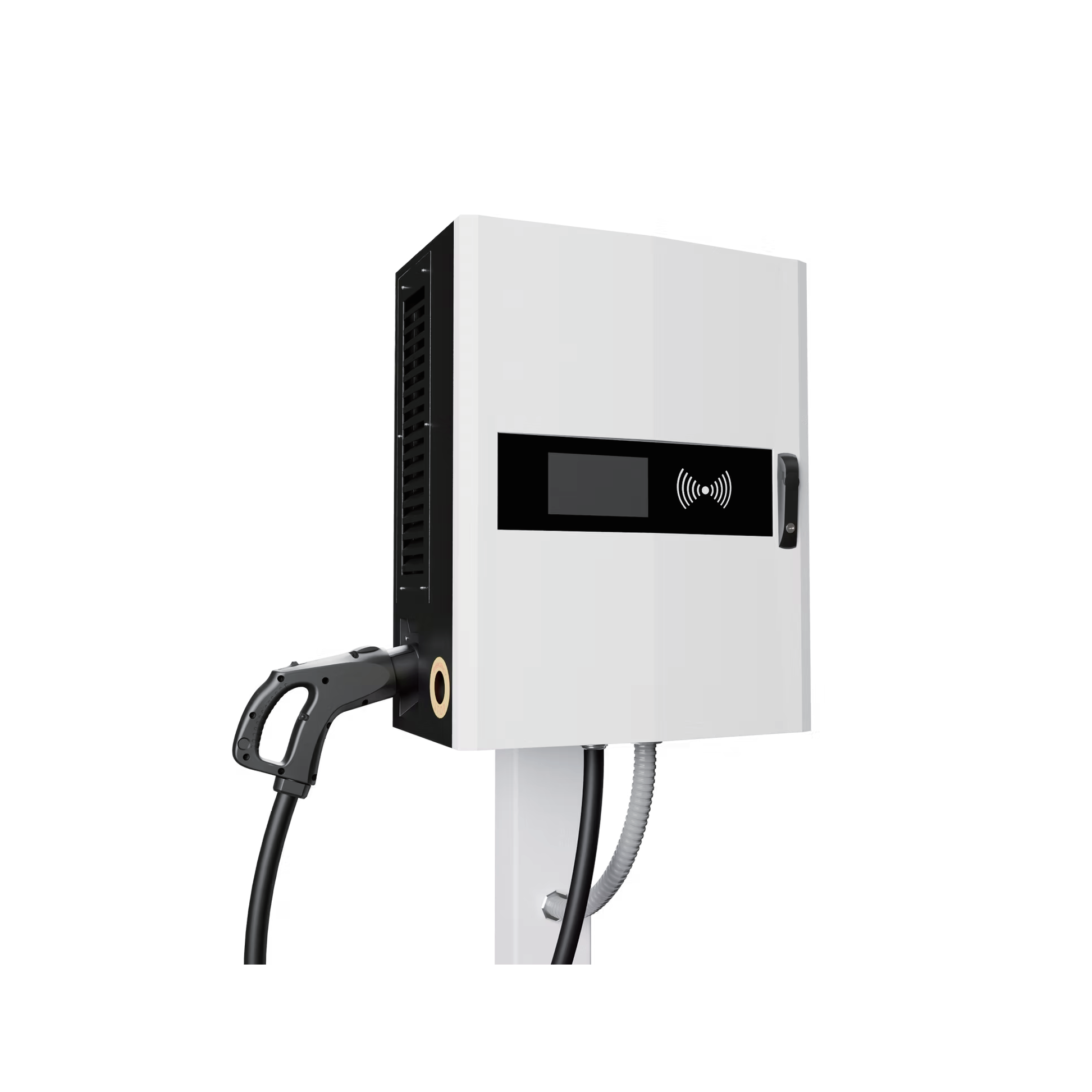

Volt-Y DC Wallbox7-60KW
- 20-60kW multi-power output, 30kW for 200km/h range, 60kW supports dual-vehicle simultaneous fast charging.
- Built-in smart load management for safe power distribution and grid overload prevention.
- Multi-protocol communication & multi-mode authentication, enabling remote management.
- Full electrical/physical protection, wide temperature adaptability and flexible installation.
- 7-inch touchscreen + LED indicators, customizable multi-language support available.
Description
Volt-Y DC Wallbox 7-60KW
Volt-Y Charging Solutions for Enterprises 20-60kw
Delivering fast, reliable, and integrated charging infrastructure for modernfleets and efficient workplace environments.
| Connector and Electrical | Connector Type | CCS2 / GB/T / CCS1 |
| Input Rating | AC380V(±15%)3ph | |
| Rated frequency: | 50/60 Hz | |
| Output voltage | 150V-1000V | |
| Output Power | 20 kW / 30 kW / 40KW/60 kW (Model dependent) | |
| Efficiency | ≥94% (Peak Efficiency) | |
| Protection | Ingress Protection | IP54 |
| Enclosure Protection | IK10 | |
| Operating temperature: | -30°C ~ +50°C (Derating above 45°C) | |
| Operating humidity: | 5% ~ 95% RH (non-condensing) | |
| Altitude: | ≤2000 m | |
| Storage temperature: | -40°C ~ +75°C | |
| Push Buttons Operation buttons | Emergency buttons | |
| Electrical protection: | Input Over/Under Voltage, Output Over-Current, Short Circuit, Surge Protection, Reverse Polarity, Over Temperature | |
| Certificate | CE, TÜV | |
| Functions | External | Ethernet,WIFI,3G/4G |
| Intemal | CAN,RS485,RS232 | |
| External communication: | OCPP 1.6J | |
| Display: | 7-inch Touchscreen, LED indicator | |
| Dynamic load balance | Smart Load Management (Built-in load balancing) | |
| User Authentication | RFID,OCPP,QR code,Password Application | |
| Support language | Support language English (Other languages available upon request) |
Key Features

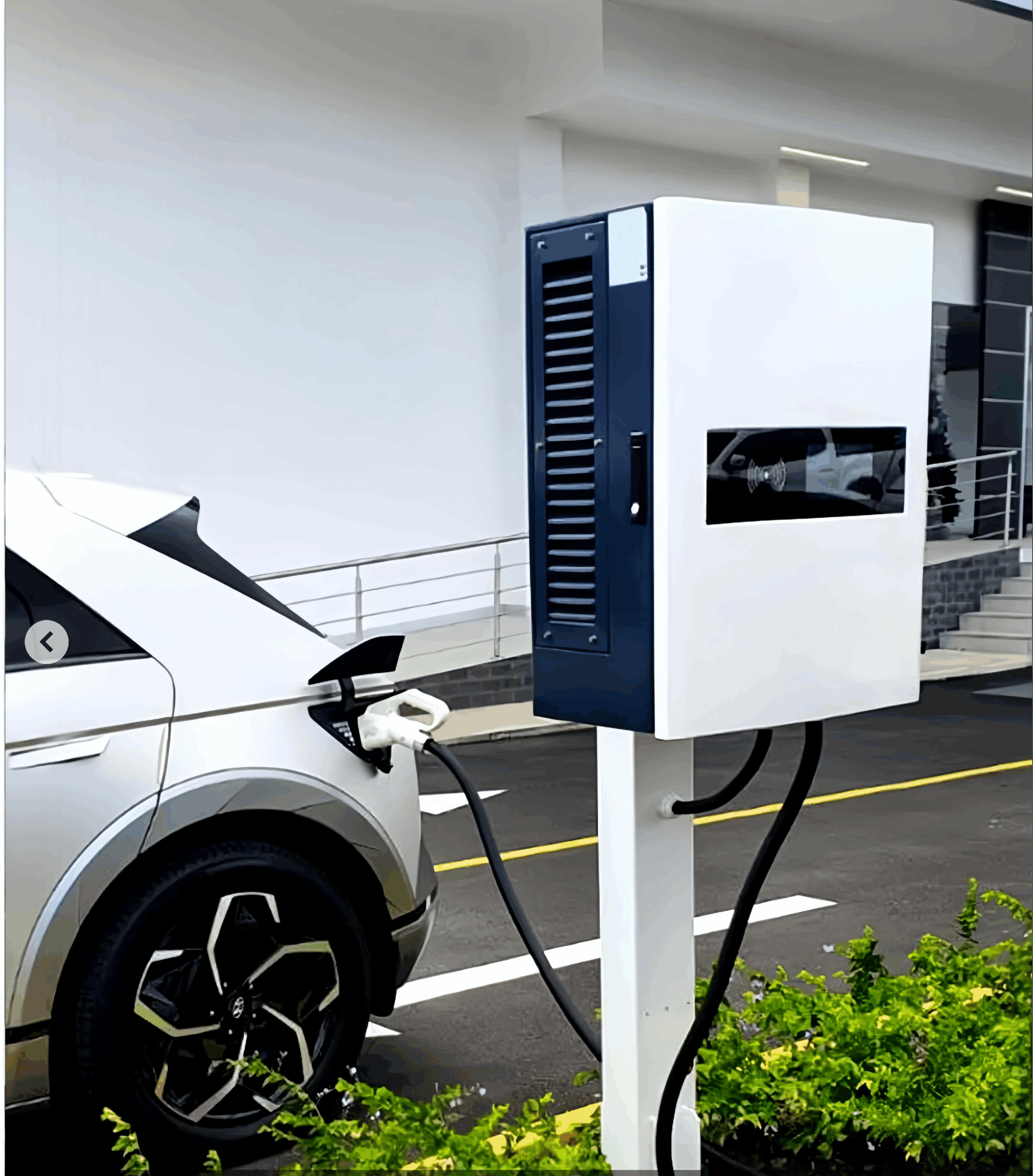

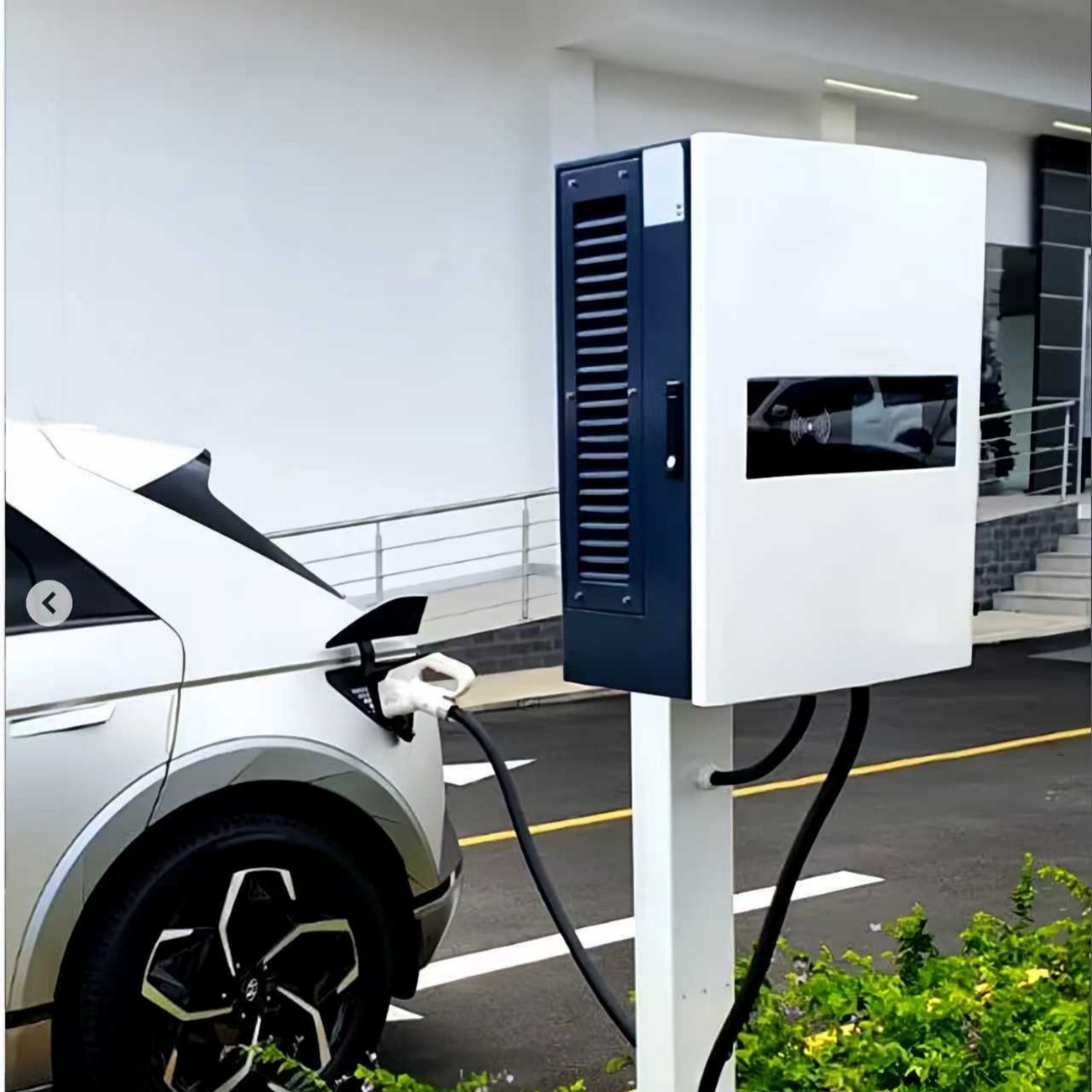

High-Speed Charging
30kW models, Charge for 1 hour, gain up to 200 km of range, significantlyreducing vehicle downtime and increasing fleet availability and operationalefficiency.

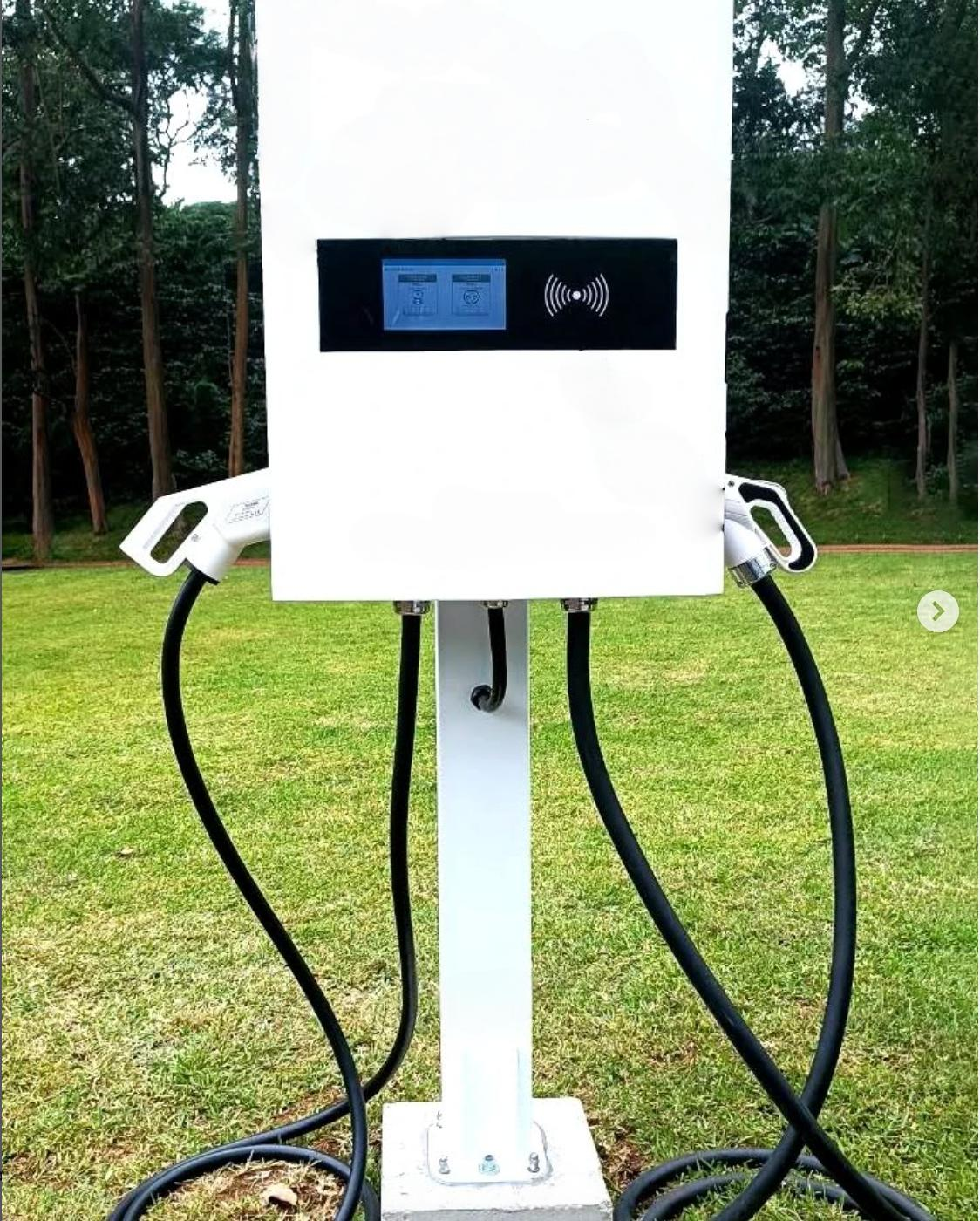

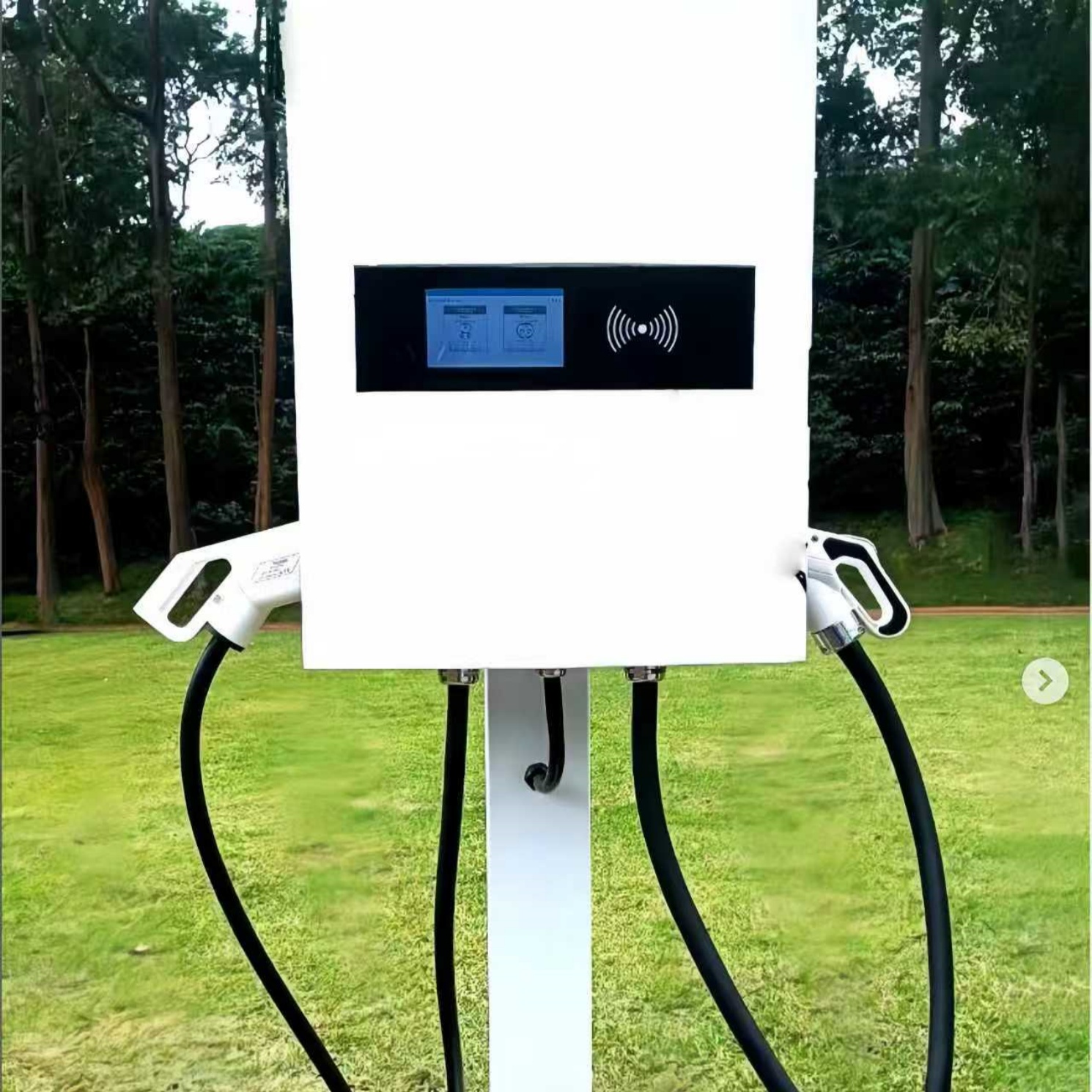

Dual-Vehicle Charging
6OkW models support simultaneous fast charging for two vehicles withindependent connectors, maximizing throughput and optimizing space andinvestment.
Smart Load Management
Built-in load balancing dynamically monitors and distributes power amongconnected EVs, ensuring charging performance while preventing gridoverload-safe and energy-efficient.

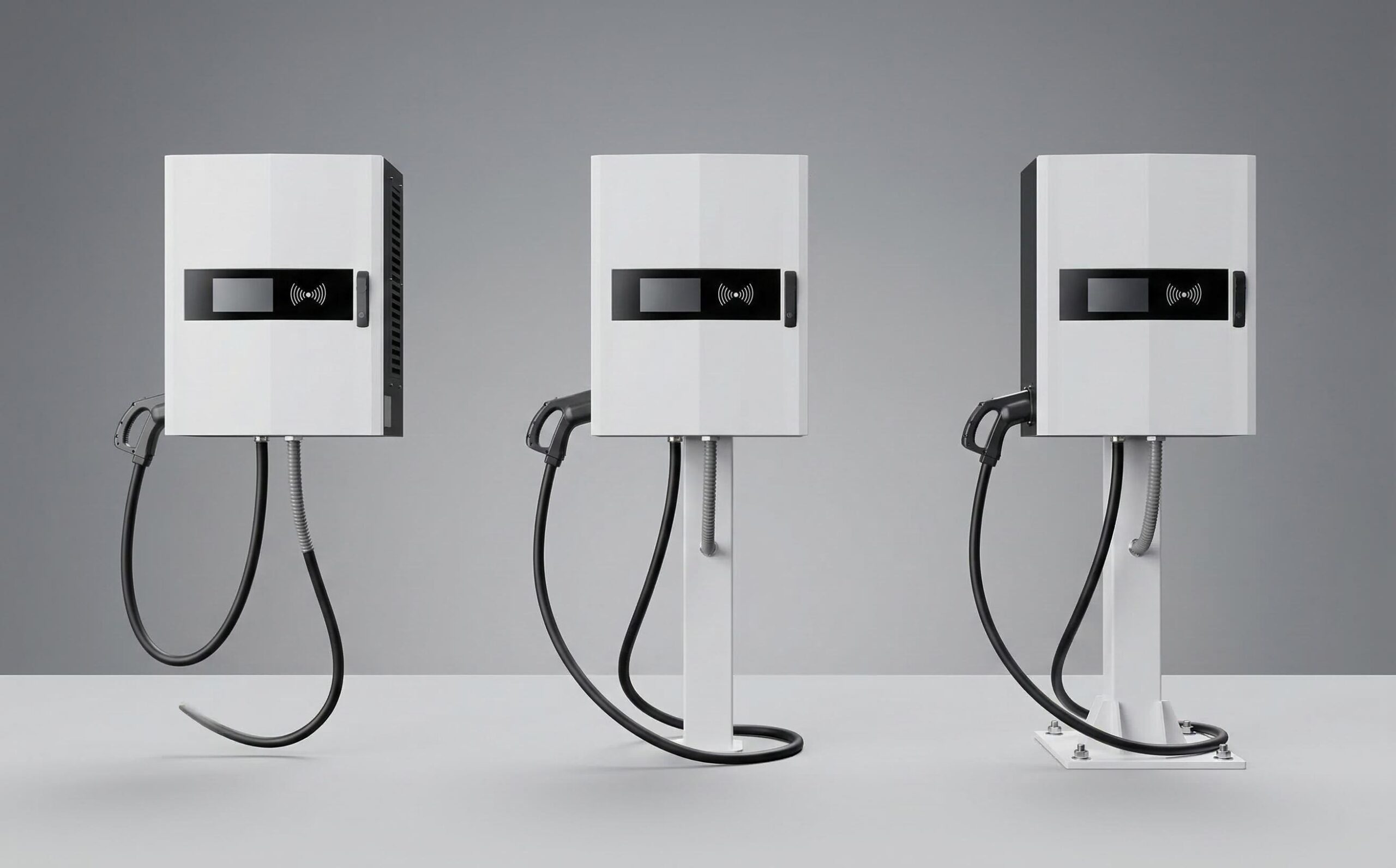

Flexible Installation Options
Choose from wall-mounted, pedestal, or foundation-based setups for seamlessintegration into existing parking lots, logistics hubs, or corporate campuses.
Ideal For
Corporate Fleet Operators – Minimize vehicle downtime and reduceoperational costs.
Workplaces & Office Parks – Offer convenient charging for employees andvisitors, supporting sustainable and modern facilities.
Logistics, Delivery & Service Fleets – Keep courier vans, maintenance trucks,and shuttle vehicles running smoothly with reliable fast charging at depots andhubs.
